Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>
Brake Warning System
Brake Warning System

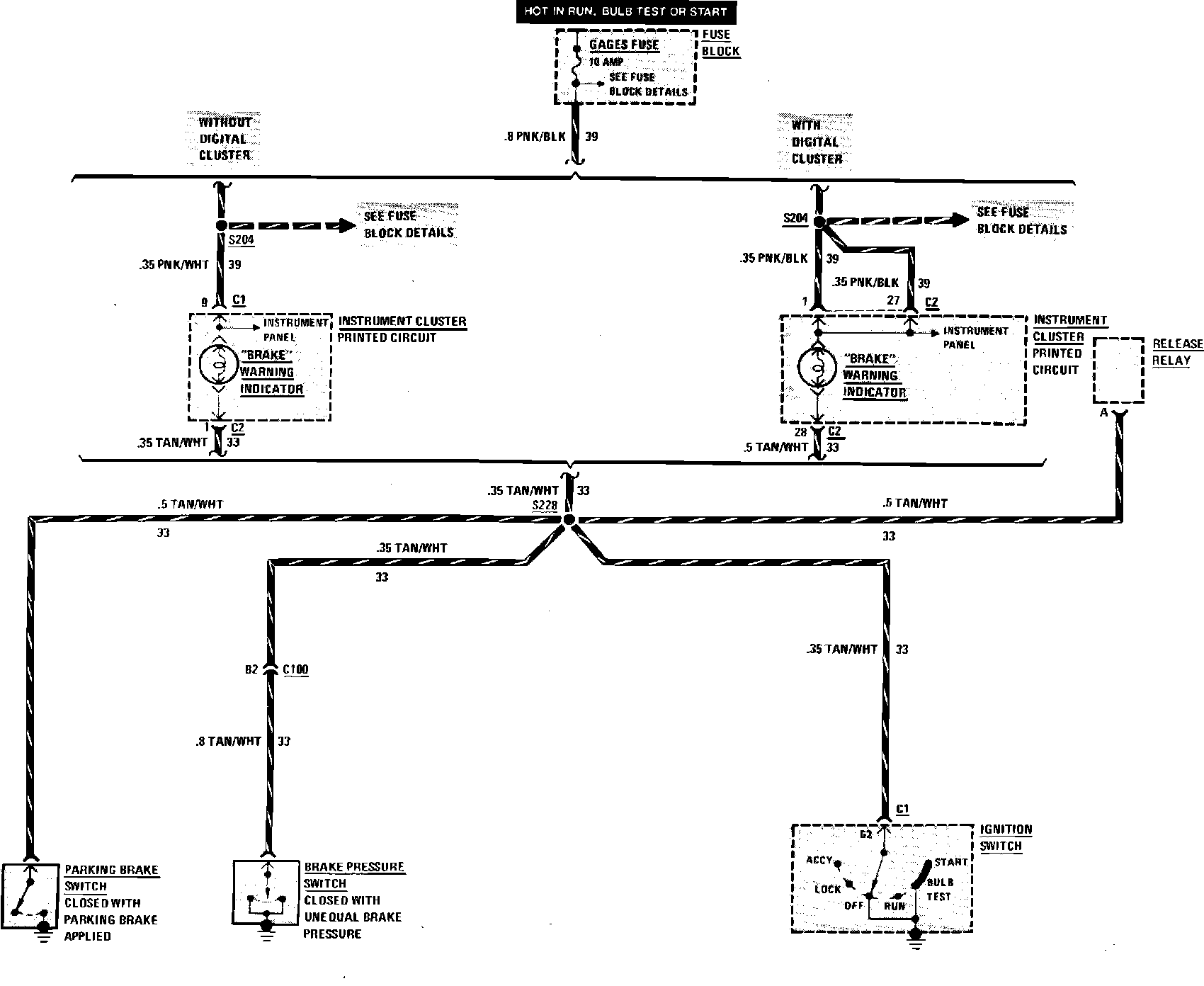

Brake Warning System Wiring Circuit:
