Pistons & Rods Assemble

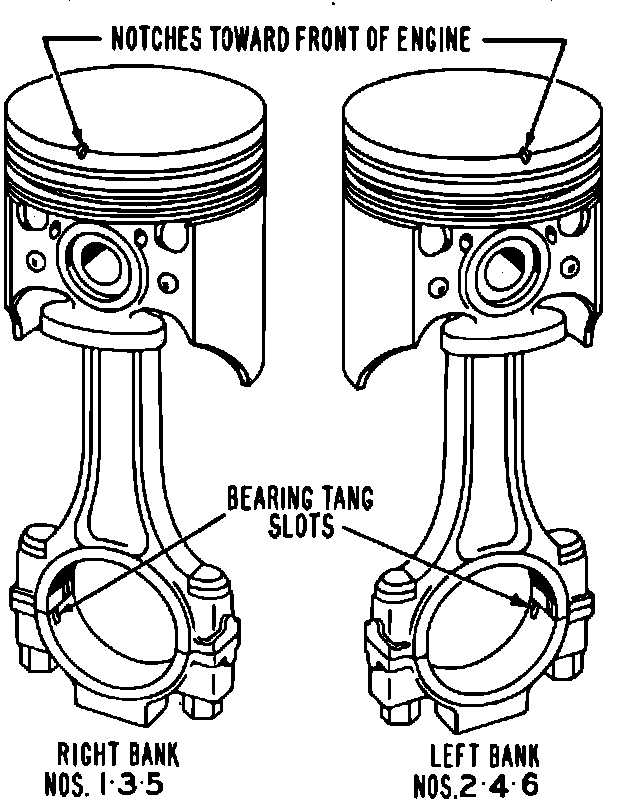

Fig. 13 Piston & rod assembly:

Assemble pistons to connecting rods as shown in Fig. 13. Upon installation, measure the connecting rod side clearance using a suitable feeler gauge. Clearance should be .006 to .017 inch.
