Cooling System
>>
Temperature Warning Lamp/Indicator, Engine Cooling

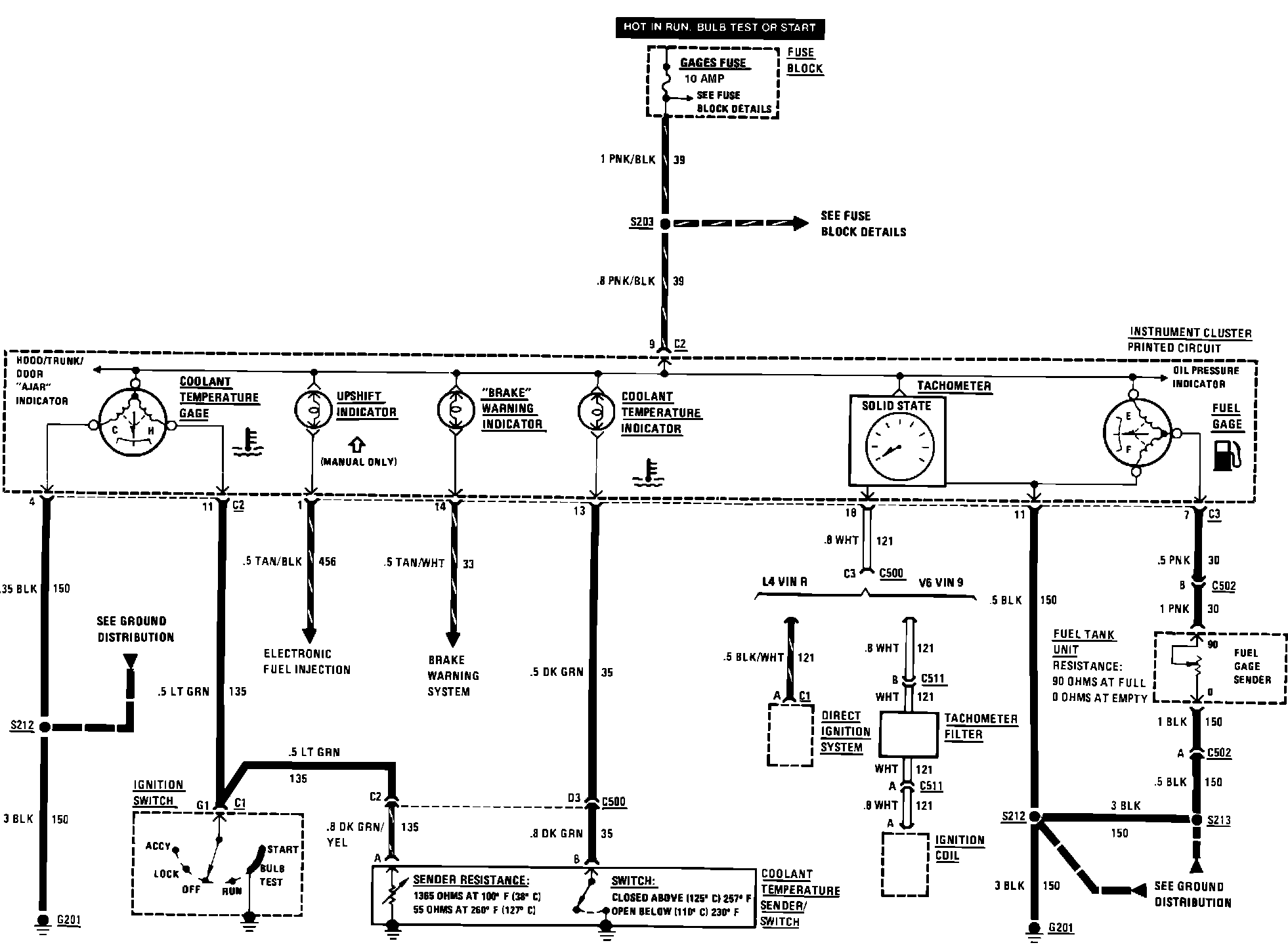

Temperature Warning Lamp/Indicator, Engine Cooling
Tachometer, Fuel Gauge, Upshift, Brake, Coolant & Indicators:
