Starting System - Starter Wire Routing

88pontiac05
Bulletin Number: 88-6-33
Reference Number: 836407
Publish Date: 3/88

Subject: STARTER WIRE ROUTING


Models

Affected: 1988 FIERO EQUIPPED WITH 2.5L ENGINE

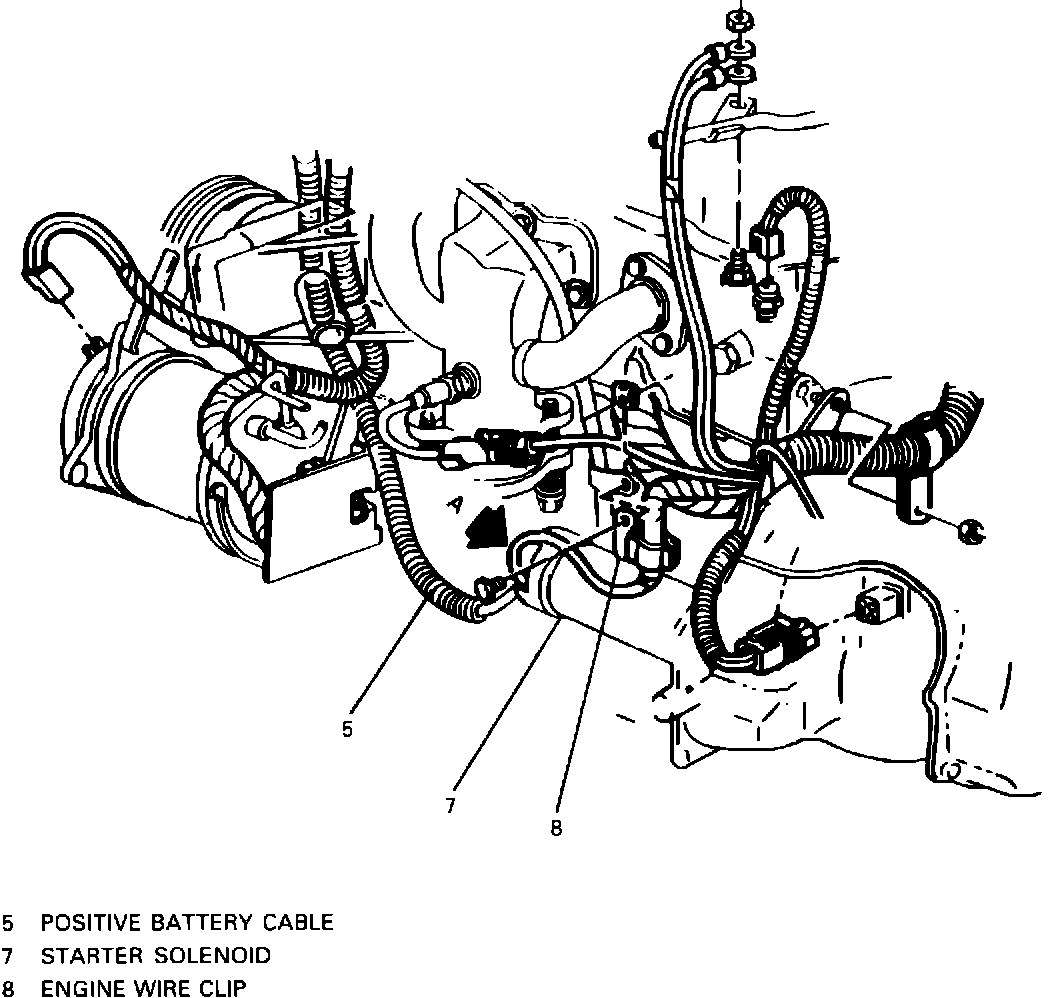

FIGURE 1 - STARTER WIRE ROUTING - 2.5L (1 OF 2):

FIGURE 2 - STARTER WIRE ROUTING - 2.5L (2 OF 2):

SERVICE MANUAL UPDATE
