Home >> Pontiac >> 1988 >> Fiero L4-151 2.5L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Rear Lights (SE Models)

Rear Lights (SE Models)

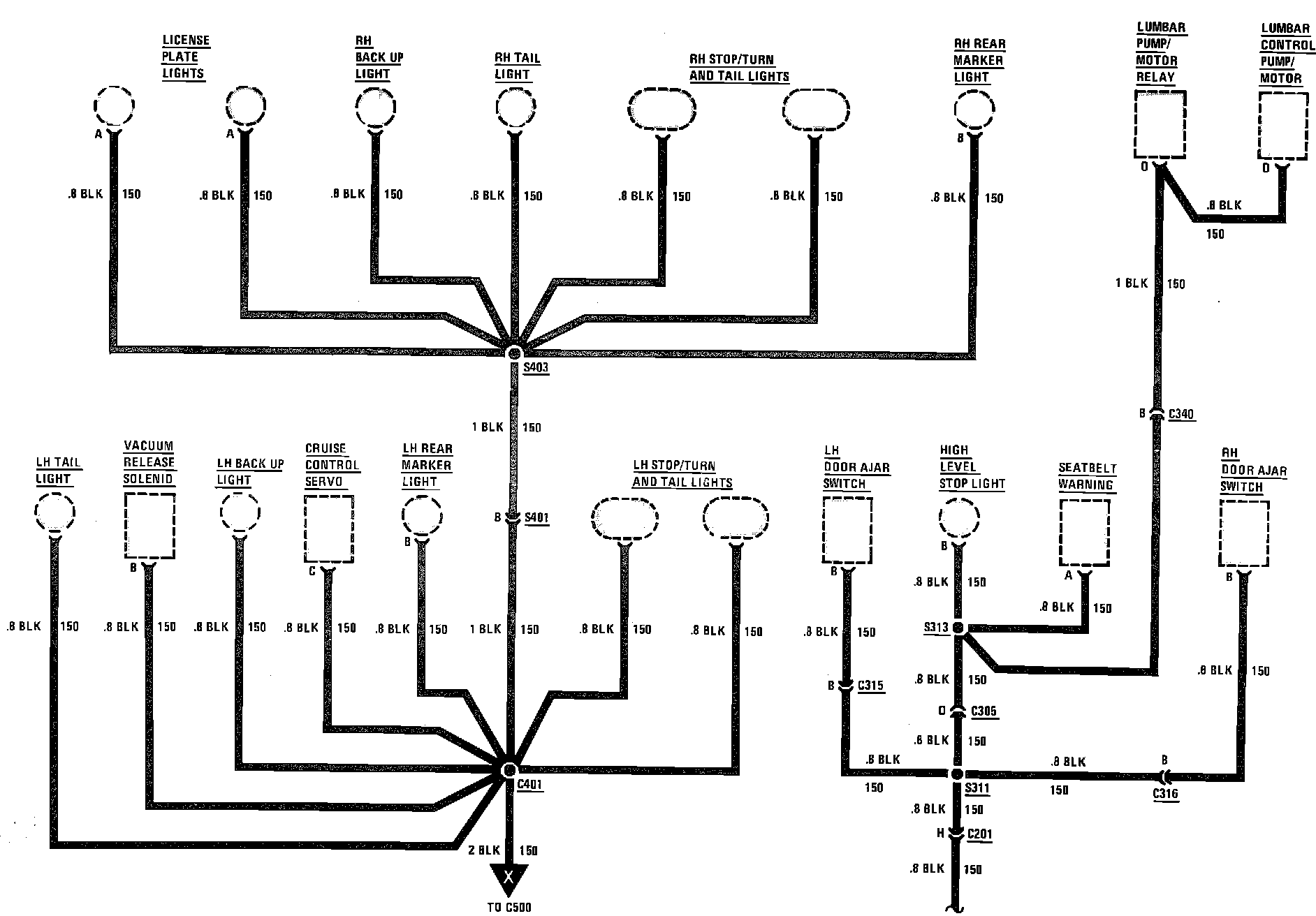

Rear Lights:



Rear Lights:
