Home >> Pontiac >> 1988 >> Fiero L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse >> Diagrams >> Electrical Diagrams >> Part 2 of 3

Part 2 of 3

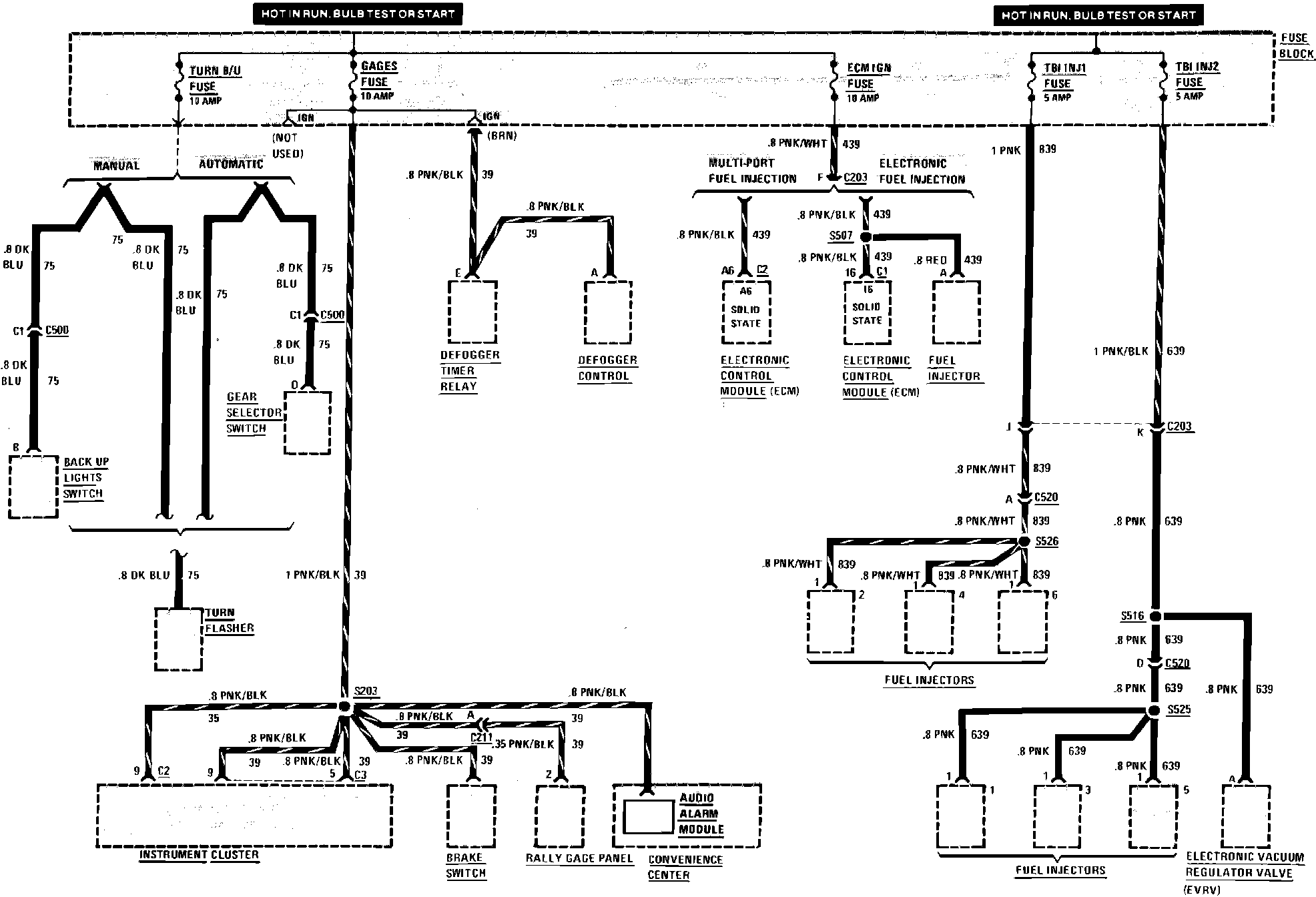

Fuse Block Details Wiring Circuit:
