Home >> Pontiac >> 1988 >> Fiero L4-151 2.5L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Rear Lights (GT Models)

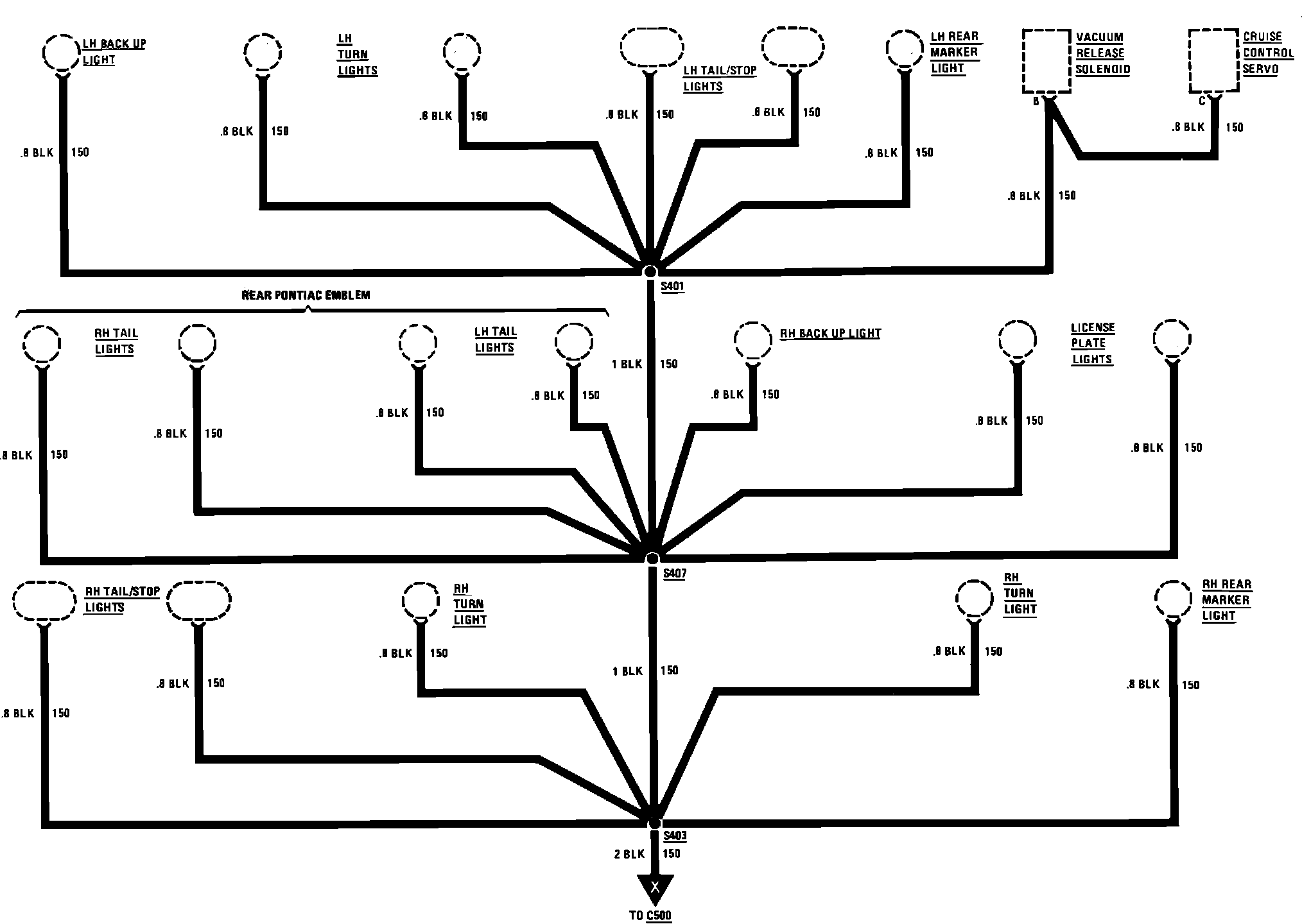

Rear Lights (GT Models)

Rear Lights:
