Pontiac
>>
1988
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Manual Transaxle
Manual Transaxle

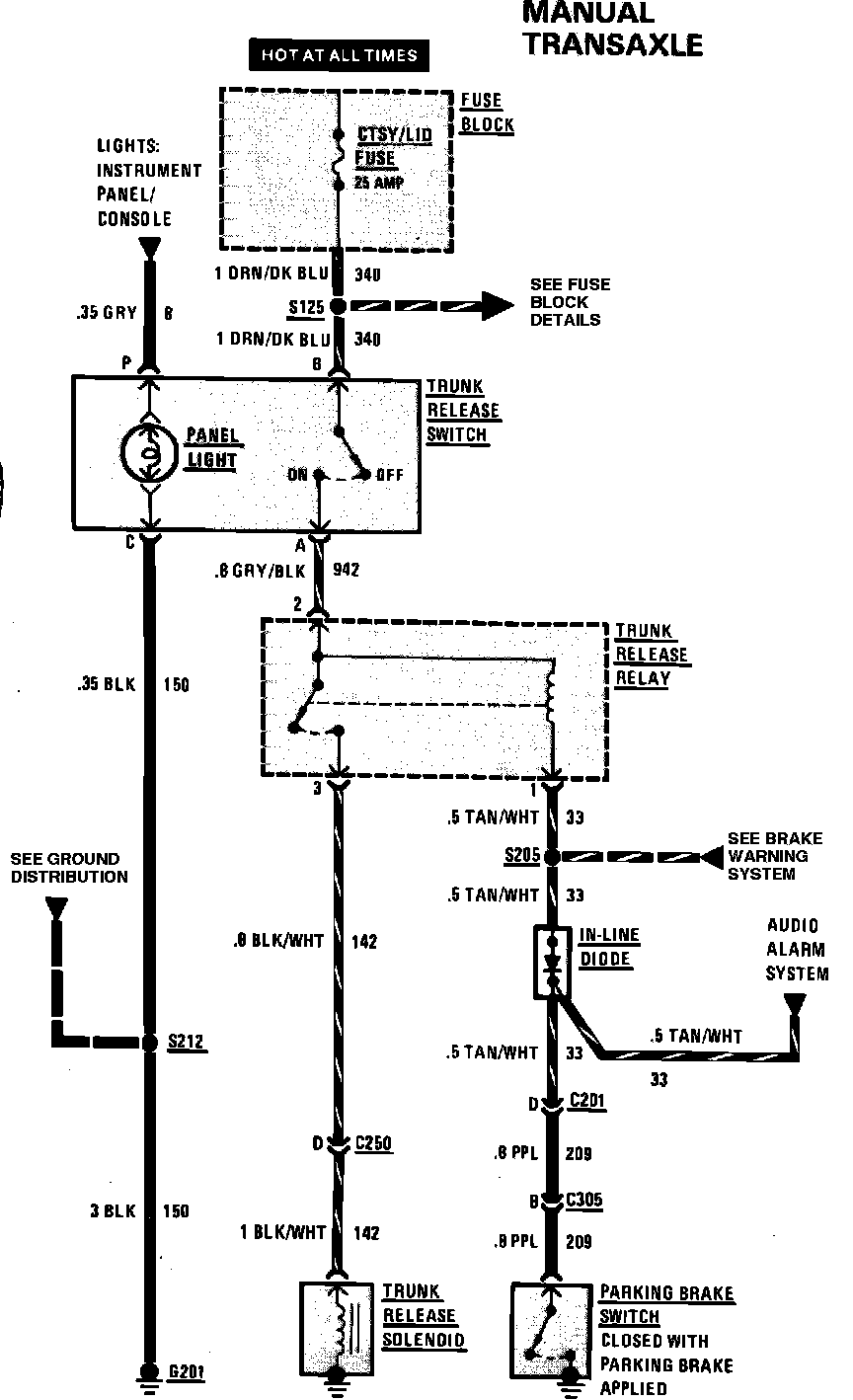

Trunk Relase Wiring Circuit Manual Transaxle:
