Pontiac
>>
1988
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk / Liftgate
>>
Automatic Transaxle
Automatic Transaxle

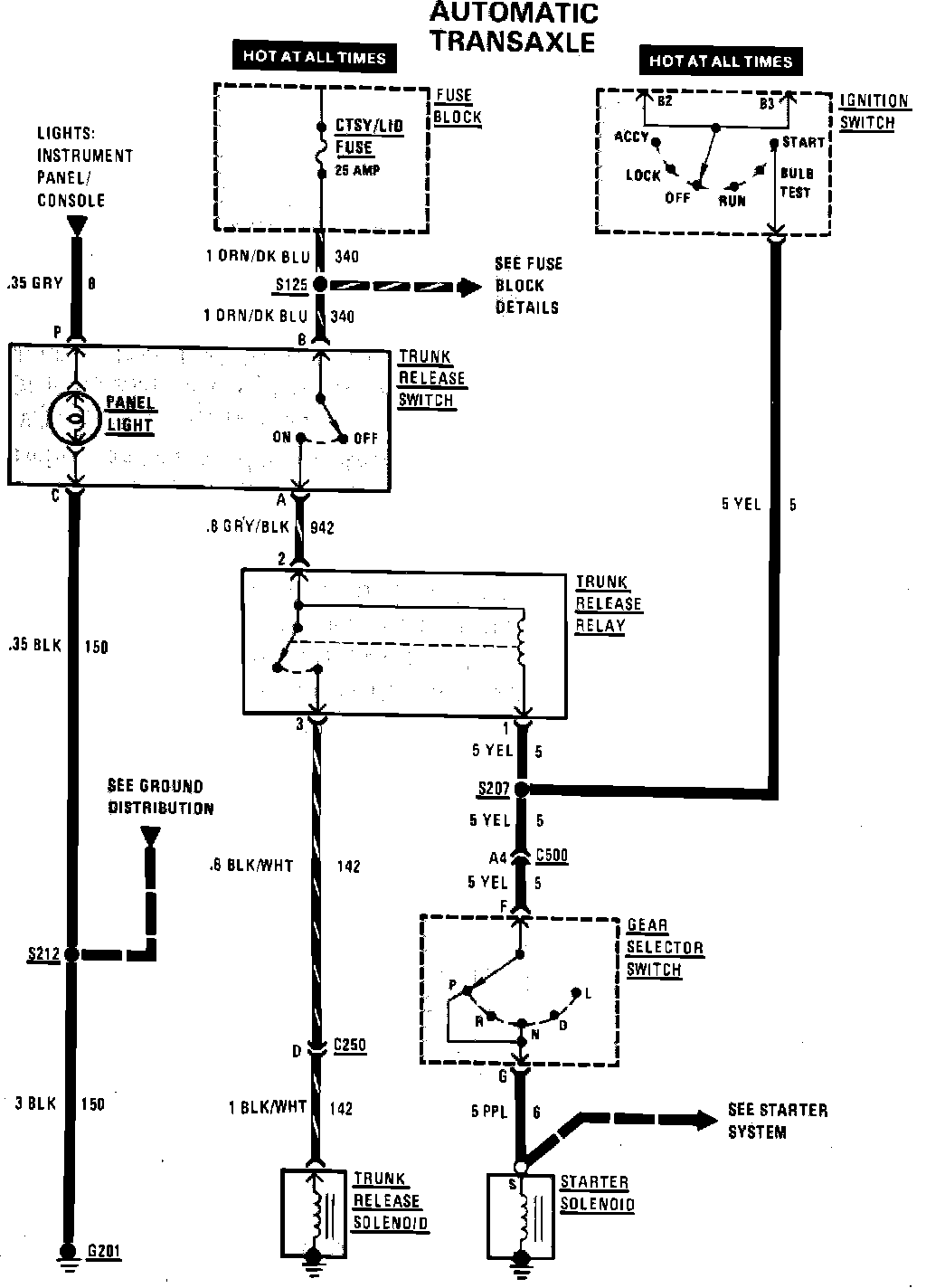

Trunk Release Wiring Circuit Automatic Transaxle:
