Pontiac
>>
1988
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Except Sub-Woofer & Amplifier System
Except Sub-Woofer & Amplifier System

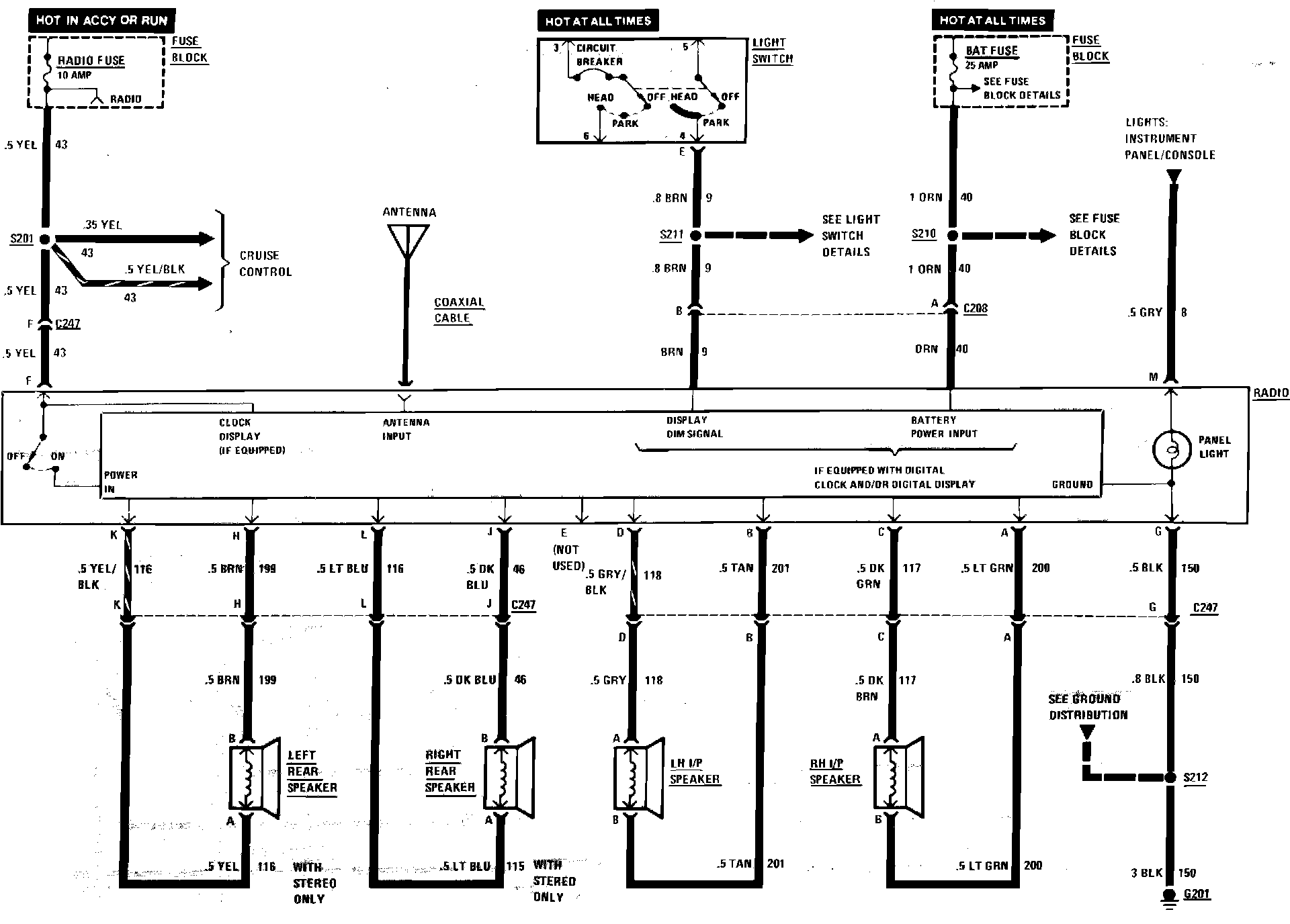

Radio Wiring Circuit Exc. Sub-Woofer & Amplifier System:
