Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Center Mounted Brake Lamp
>>
SE Models
SE Models

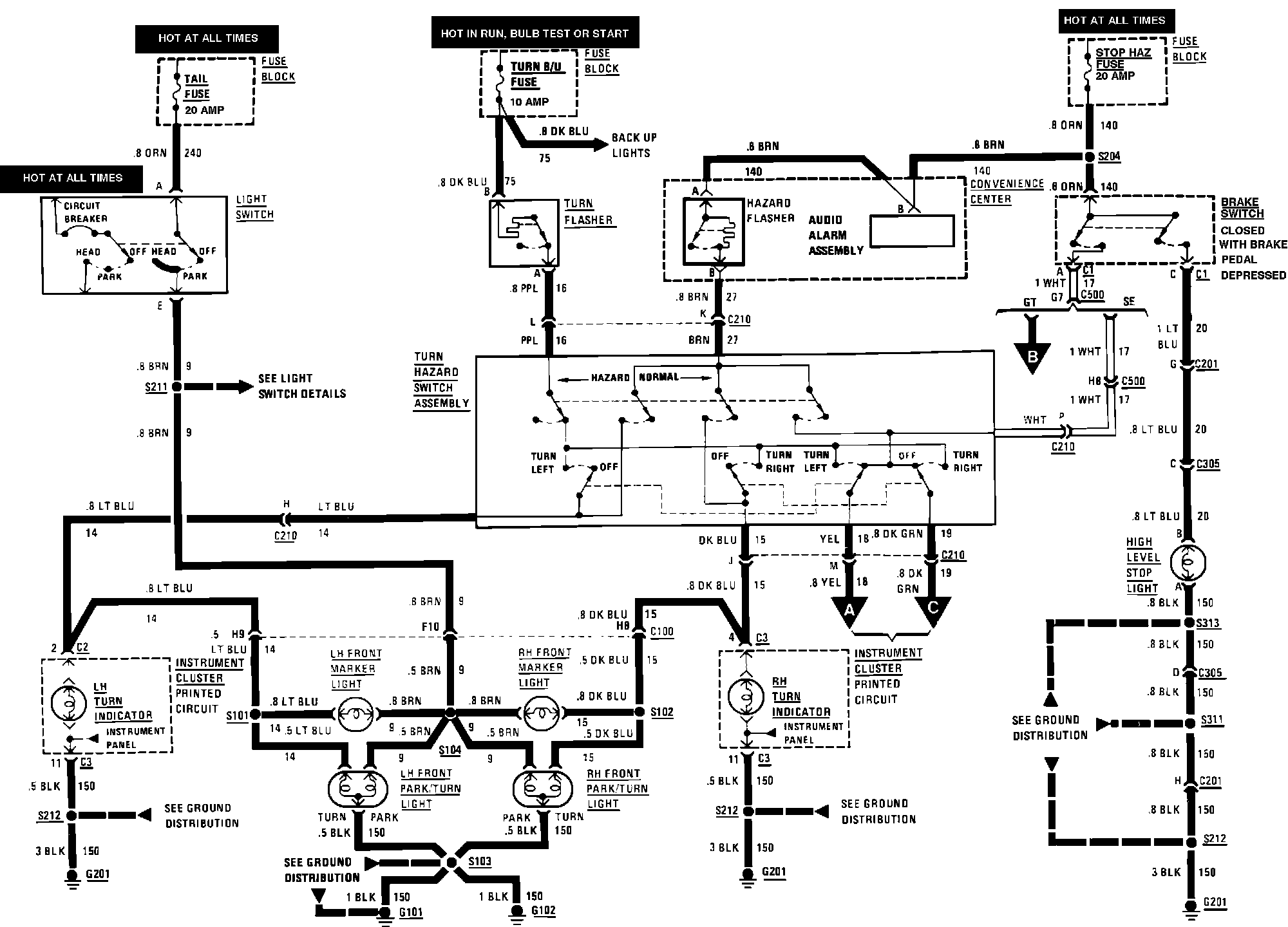

Front Marker, Hazard, High Level Stop, Park, Stop & Turn Lamps:
