Pontiac
>>
1988
>>
Fiero L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
System Diagram
>>
Blower Controls
Blower Controls

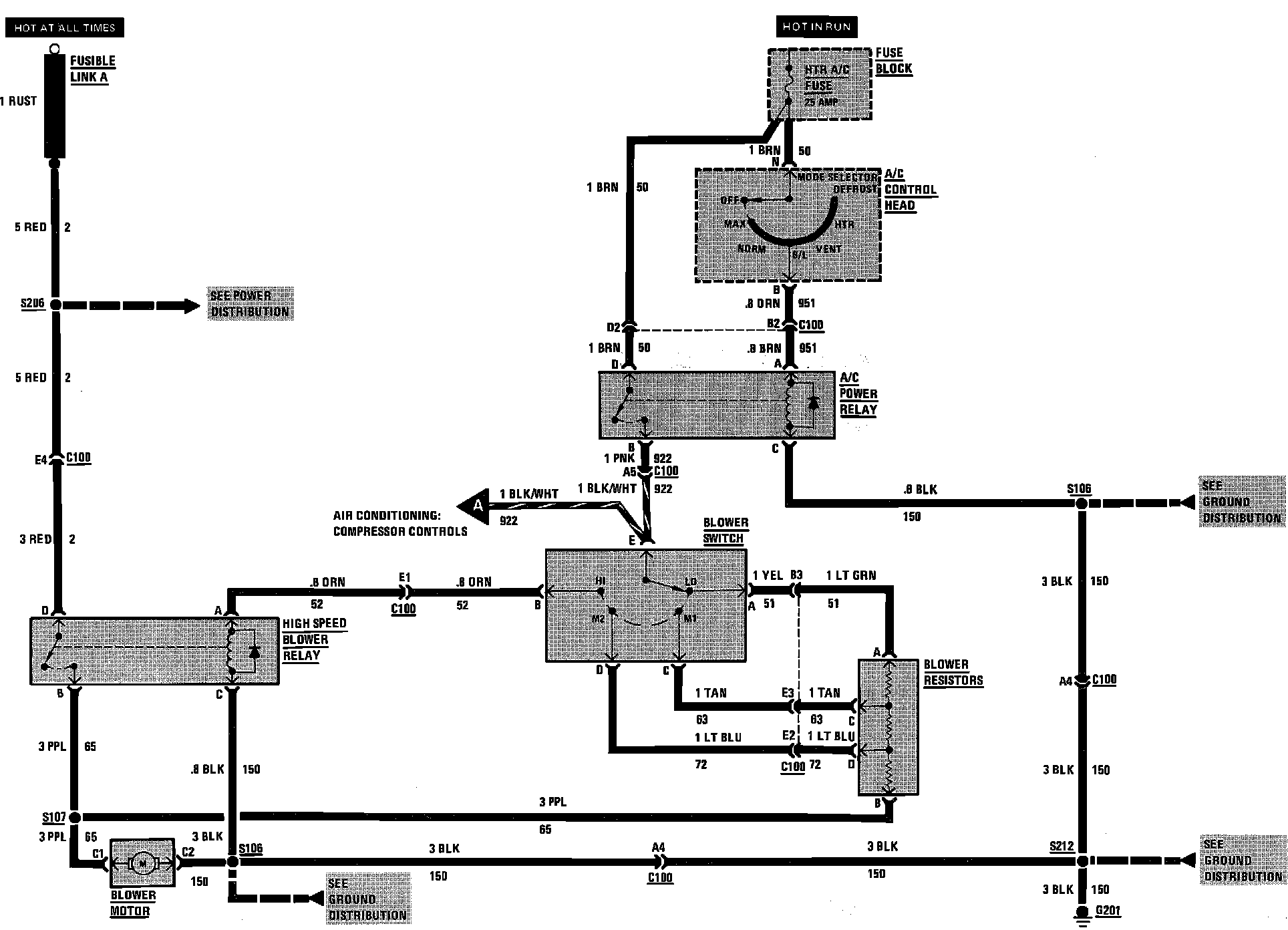

A/C System Wiring Circuit (Blower Circuits):
