Bonneville V6-231 3.8L VIN 3 SFI
>>
Repair and Diagnosis
>>
Relays and Modules
>>
Relays and Modules - Instrument Panel
>>
Speedometer Module
>>
Diagrams
>>
Electrical Diagrams
>>
Indicator Clusters
Indicator Clusters

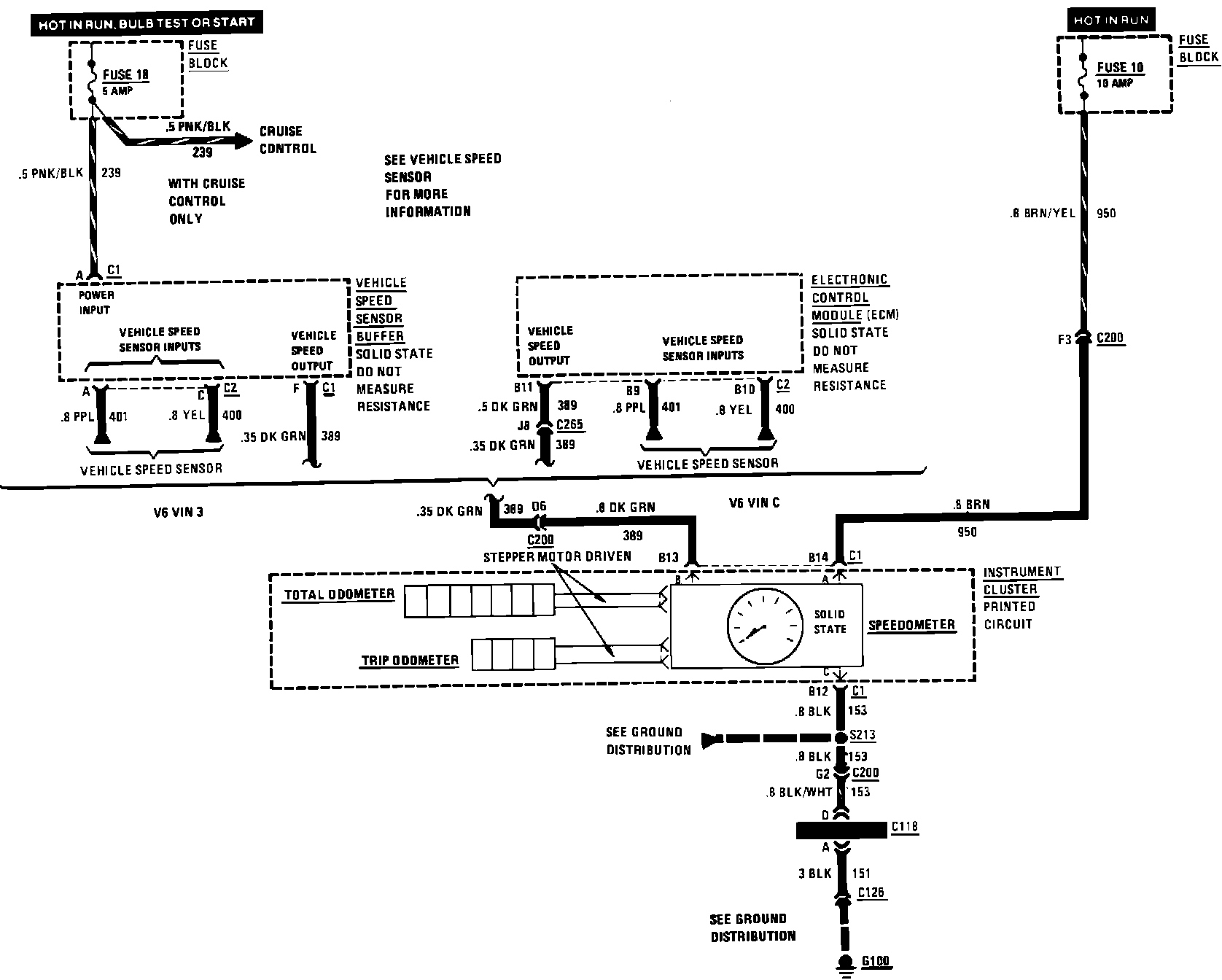

Speedometer (W/Indicators Cluster):
