Home >> Pontiac >> 1988 >> Bonneville V6-231 3.8L VIN 3 SFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Instrument Panel >> Speedometer Module >> Diagrams >> Electrical Diagrams >> Gages Cluster, Less Driver Information Center

Gages Cluster, Less Driver Information Center

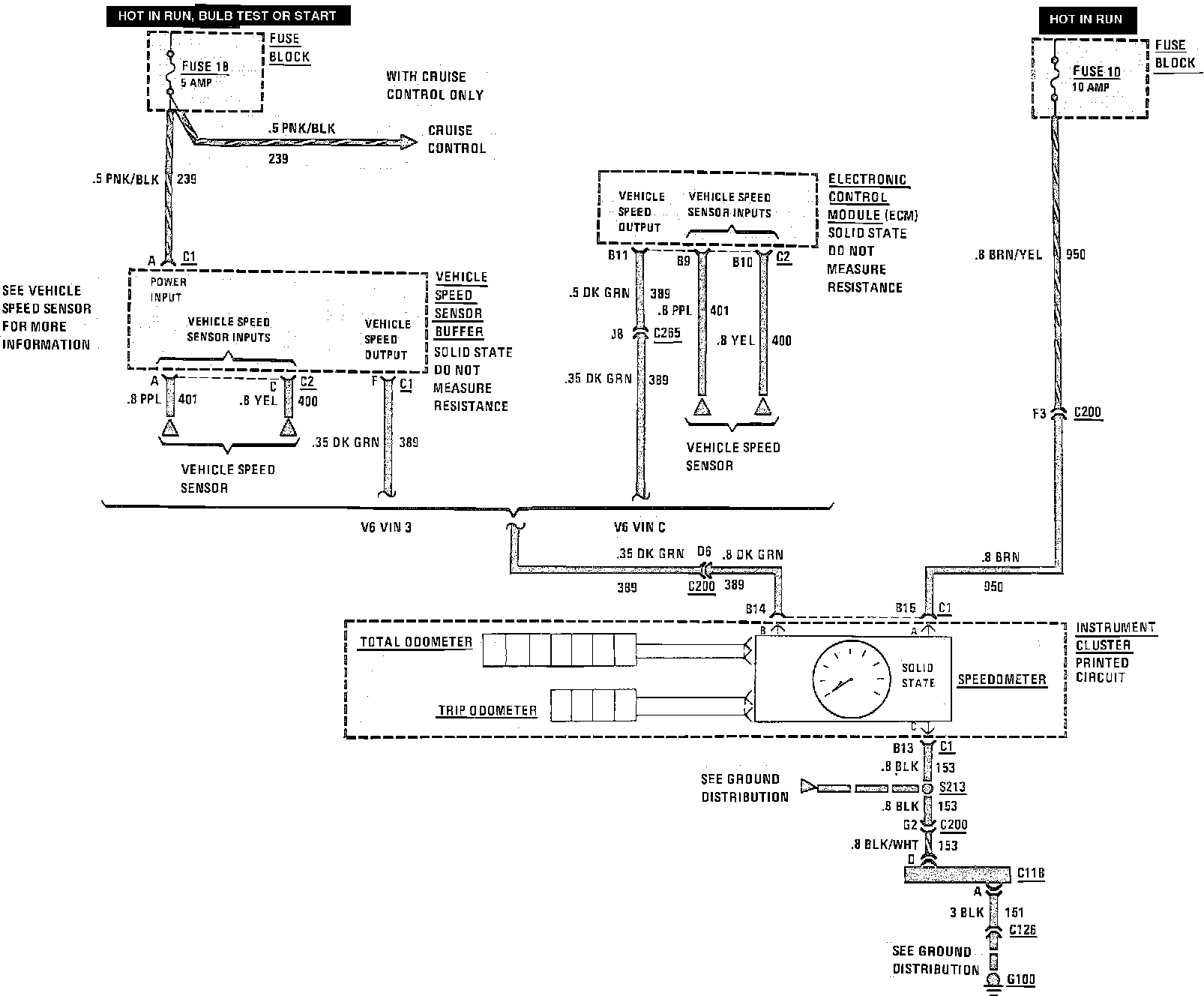

Speedometer (W/Gauges Cluster, Less Driver Info Center):
