Home >> Pontiac >> 1988 >> Bonneville V6-231 3.8L VIN 3 SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor HVAC >> Testing and Inspection >> Component Tests and General Diagnostics >> Manual Climate Controls >> B: ECM Compressor Control Test >> Table Two

Table Two

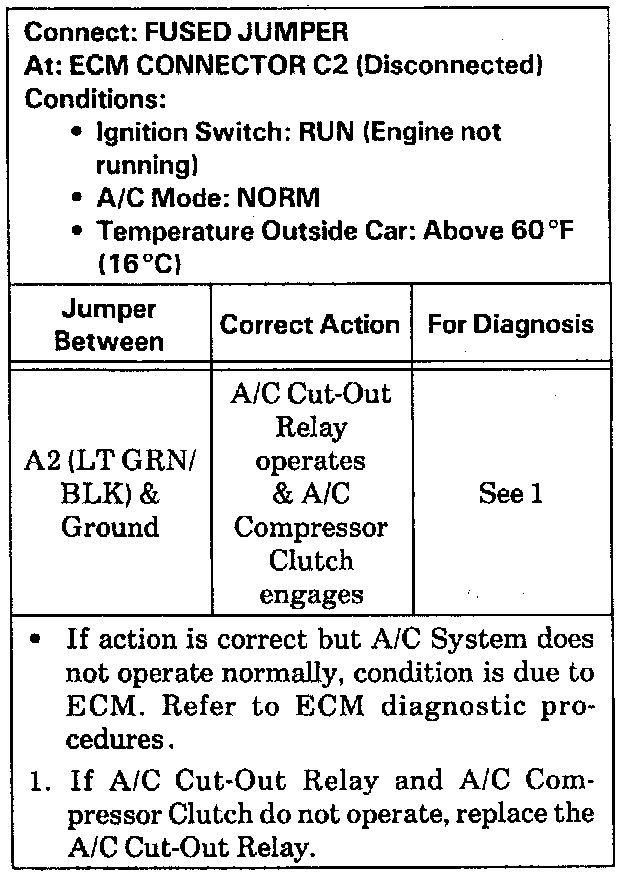

B: Compressor Control Test (Table 2):
