Home
>>
Pontiac
>>
1988
>>
6000 V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>

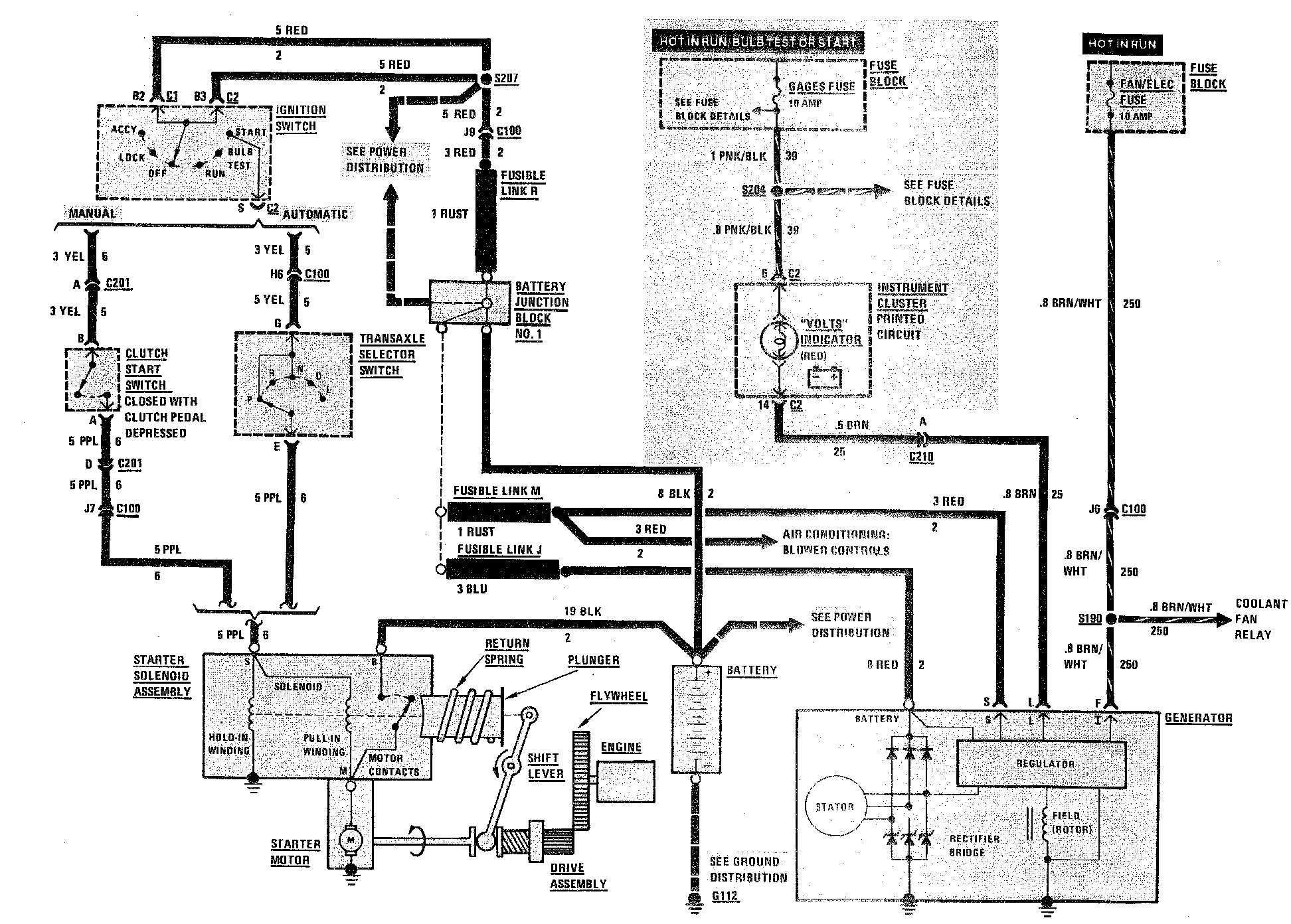

System Diagram
>>
Without Digital Cluster
Without Digital Cluster
Starting And Charging:
