Home >> Pontiac >> 1988 >> 6000 V6-173 2.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Manifold Air Temperature (MAT) Sensor >> With Speed Density

With Speed Density

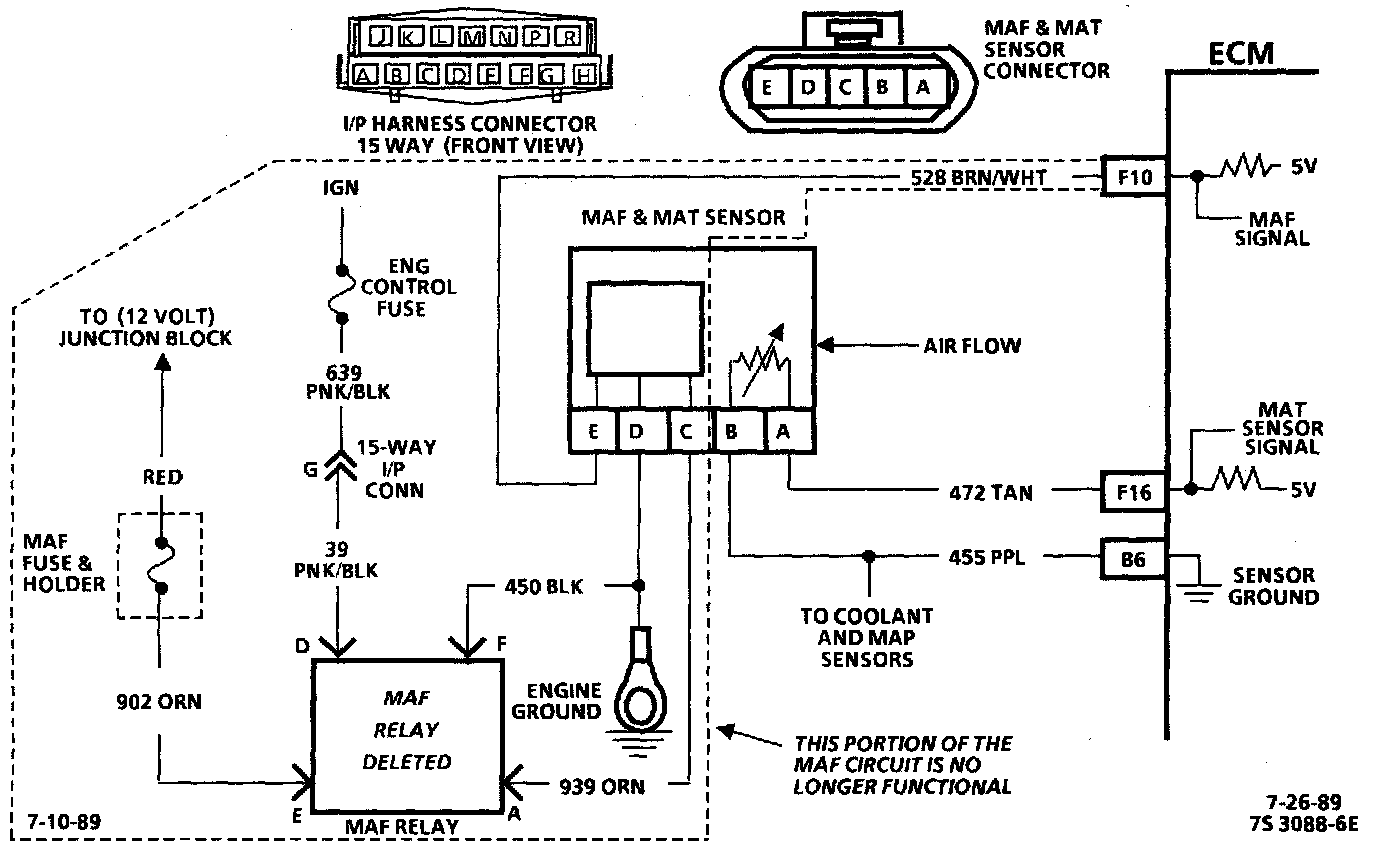

Manifold Air Temperature (MAT) Sensor Circuit:
