Pontiac
>>
1988
>>
6000 L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heated Glass Element
>>
STE
STE

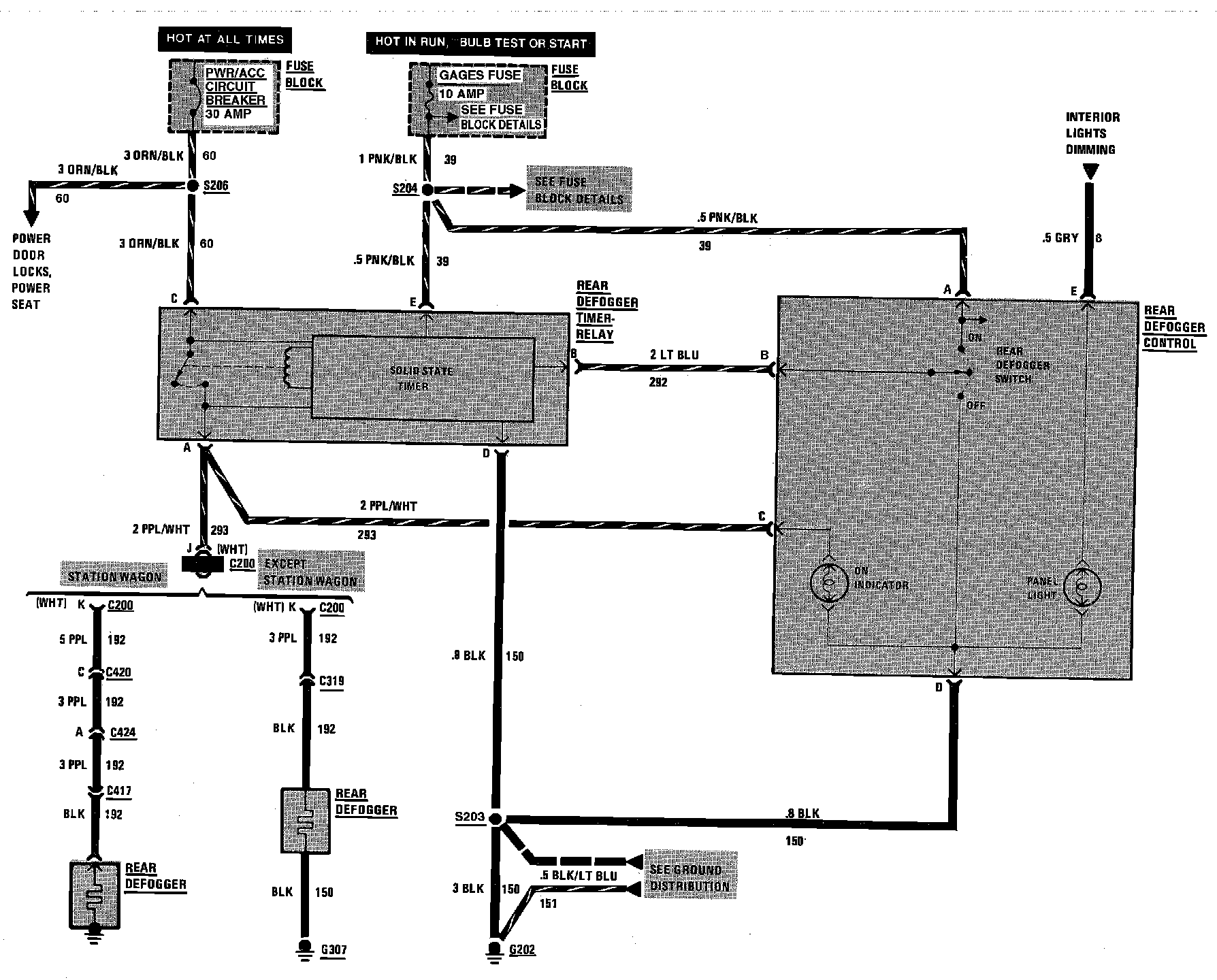

Defogger Wiring Circuit:
