Pontiac
>>
1988
>>
6000 L4-151 2.5L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
F-Charts
>>
Chart F-3
Chart F-3

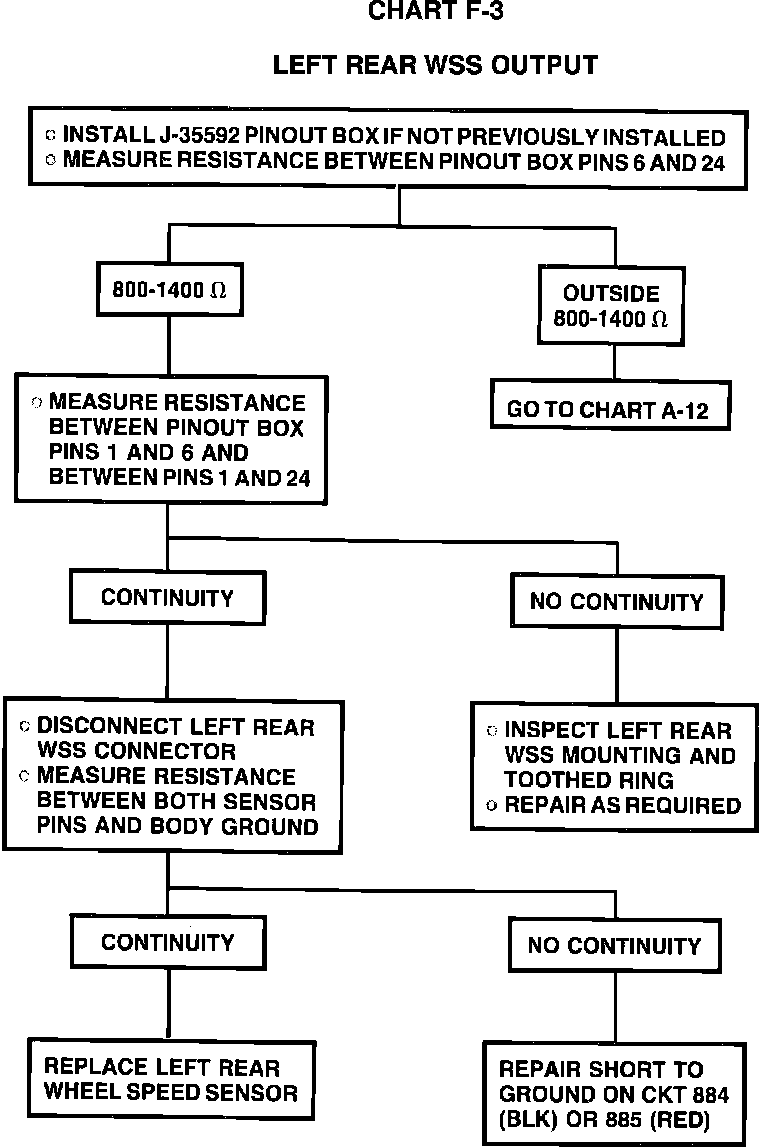

Fig. 1 Chart F-3:
