Home >> Pontiac >> 1988 >> 6000 L4-151 2.5L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> A Charts >> Chart A-13

Chart A-13

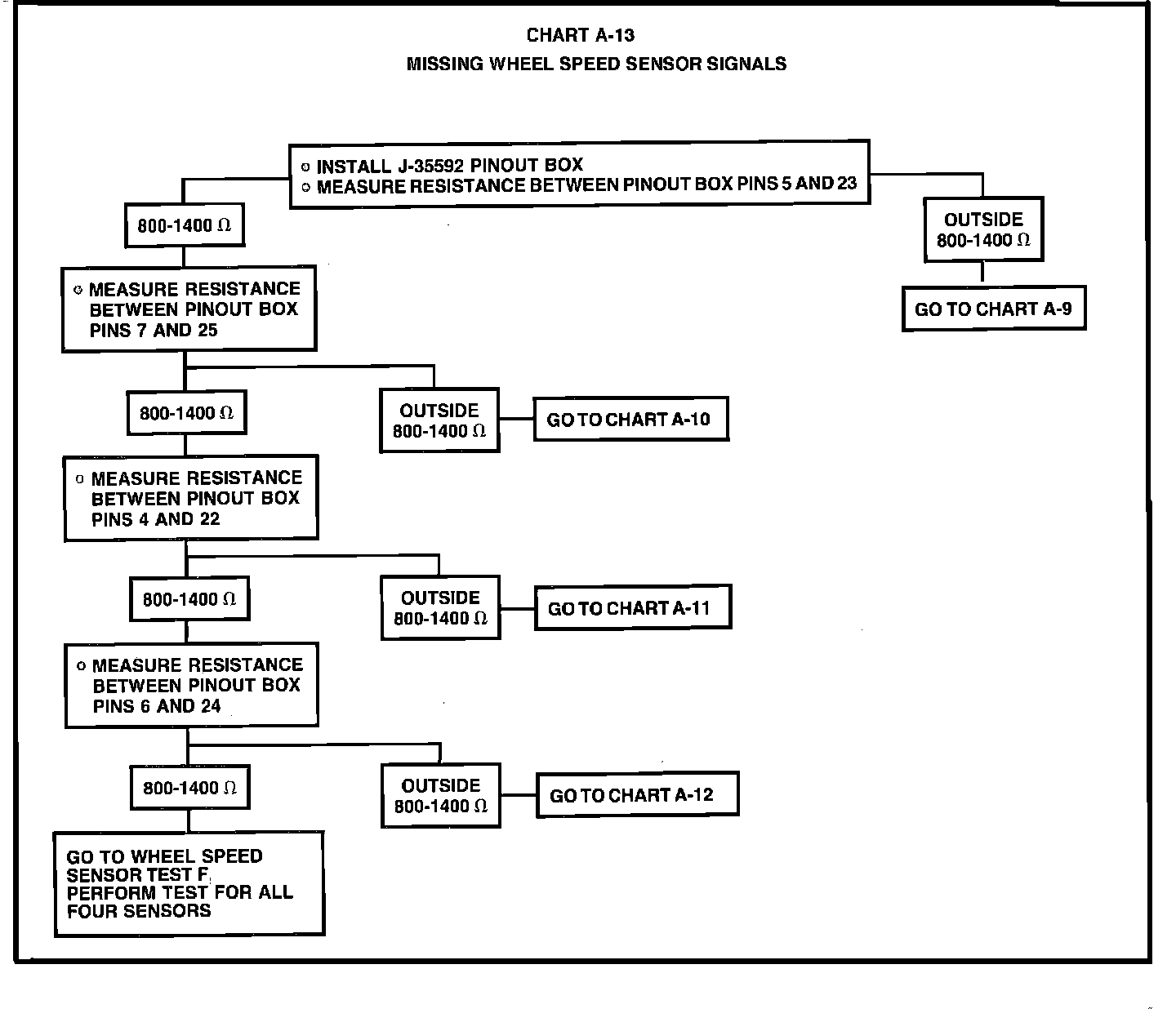

Fig. 1 Chart A-13:
