Home
>>
Pontiac
>>
1987
>>
Firebird V6-173 2.8L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Cold Start, Emission Control & Mass Air Flow Sensor
Cold Start, Emission Control & Mass Air Flow Sensor

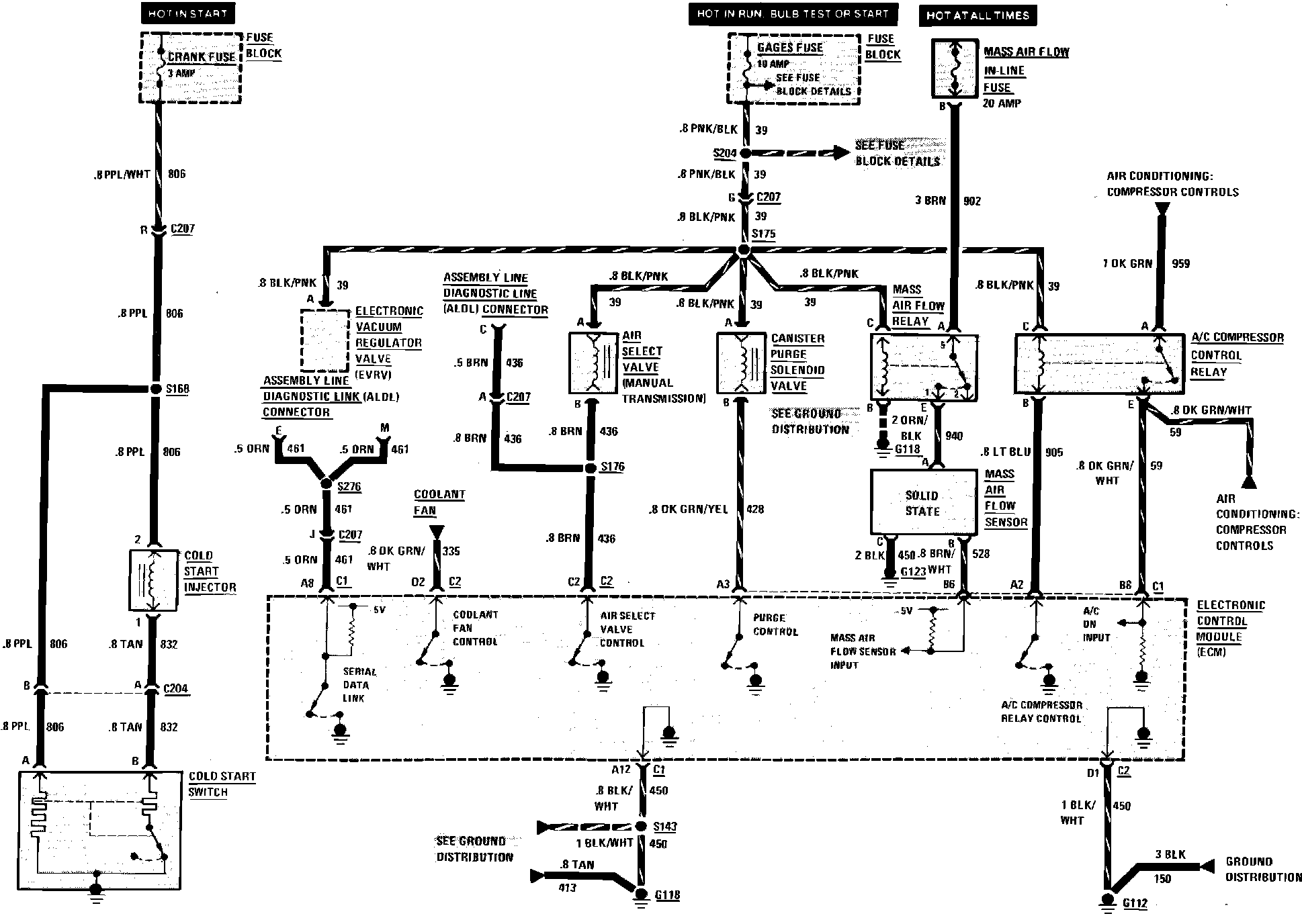

Fuel Injection/Multi-Port Wiring Circuit (Cold Start, Emission Control & Mass Air Flow Sensor). W/V6-173/2.8L:
