Pontiac
>>
1986
>>
Parisienne V6-262 4.3L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

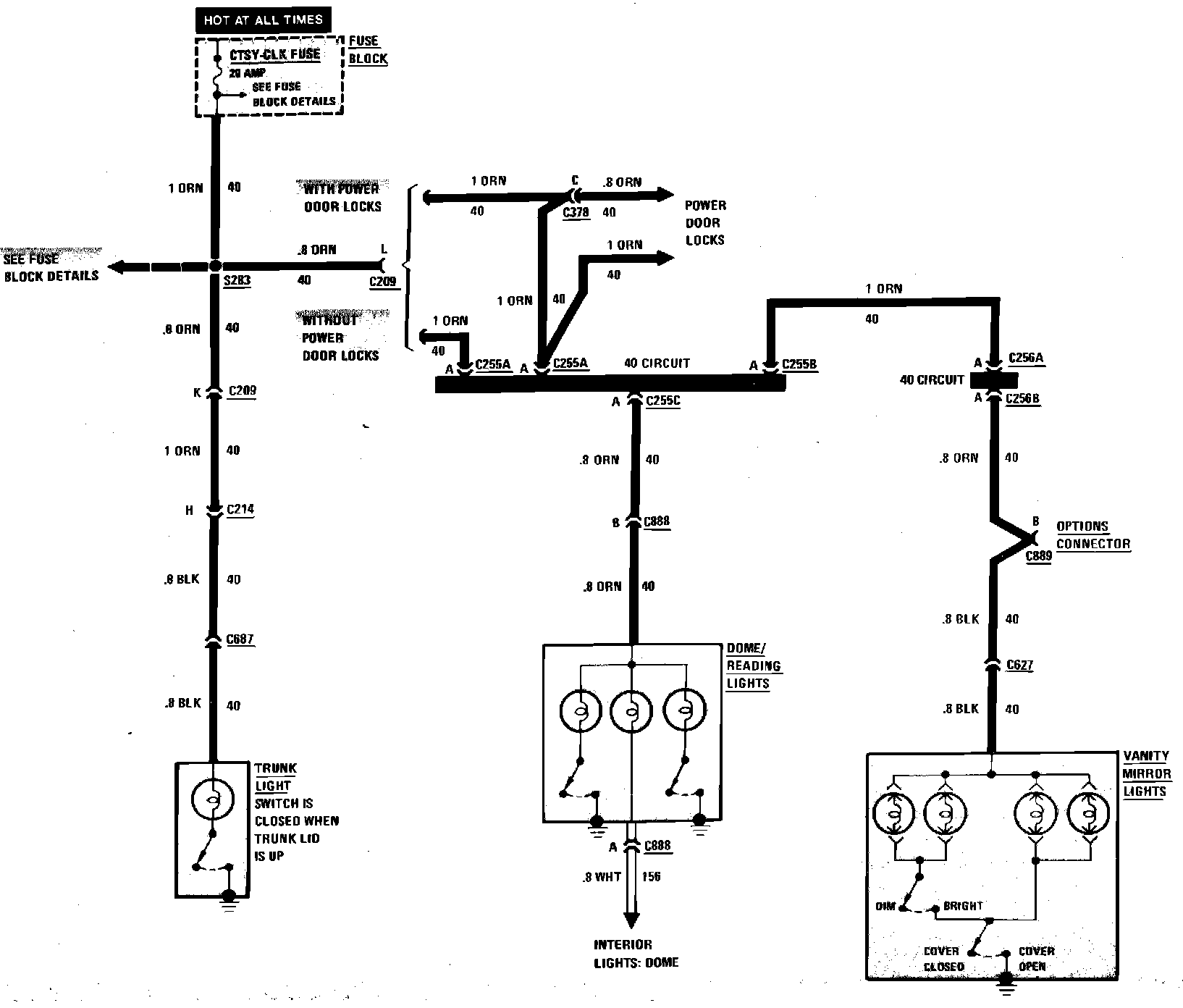

Reading, Trunk & Vanity Mirror Lamps Wiring Circuit:
