Brake Warning Indicator
>>
Wagon Less Power Master Brake System
Wagon Less Power Master Brake System

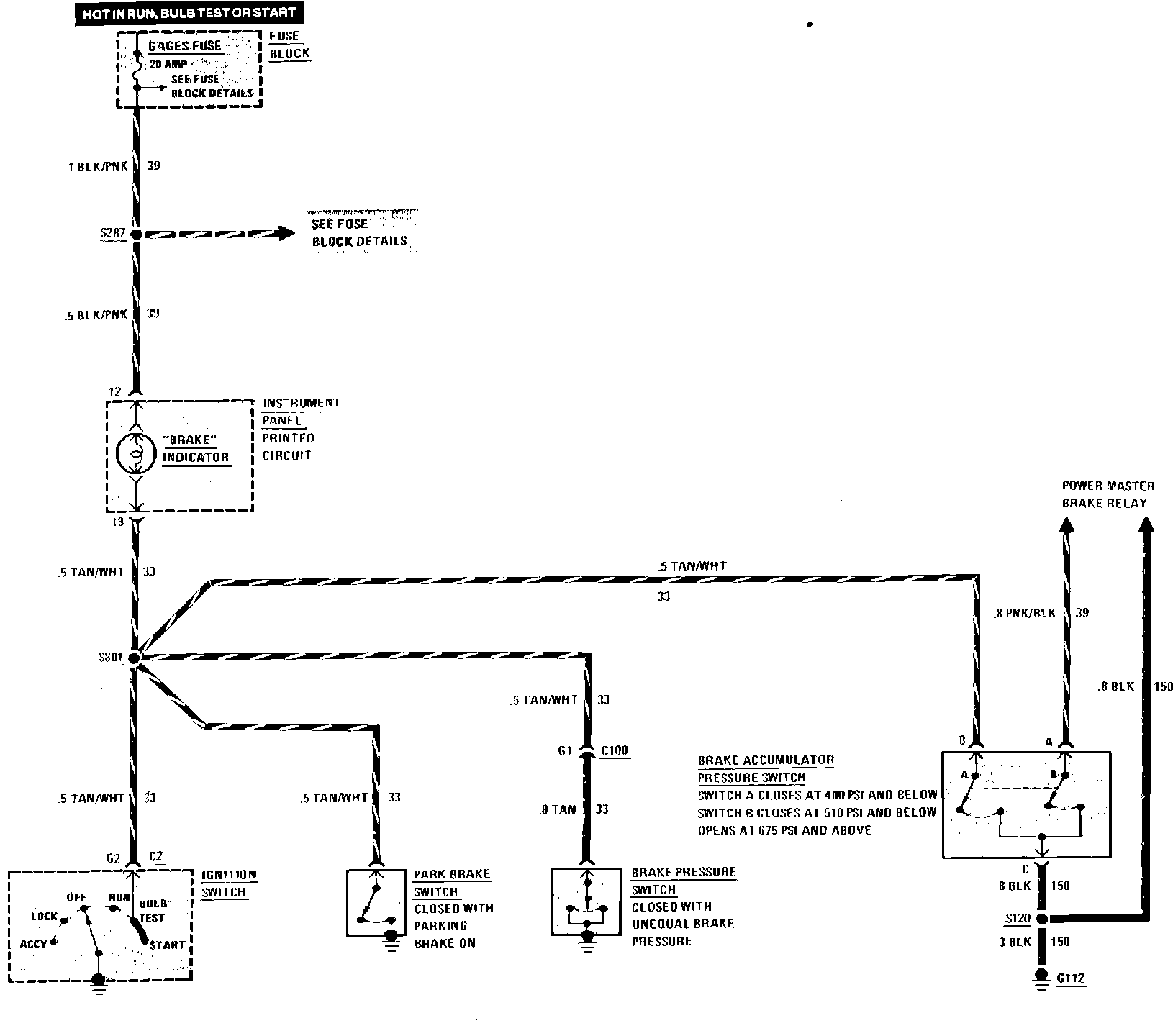

Brake Warning System Wiring Circuit (Wagon Less Power Master Brake System):
