Pontiac
>>
1986
>>
Parisienne V6-262 4.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Warning Indicator
>>
Exc. Wagon Less Power Master Brake System
Exc. Wagon Less Power Master Brake System

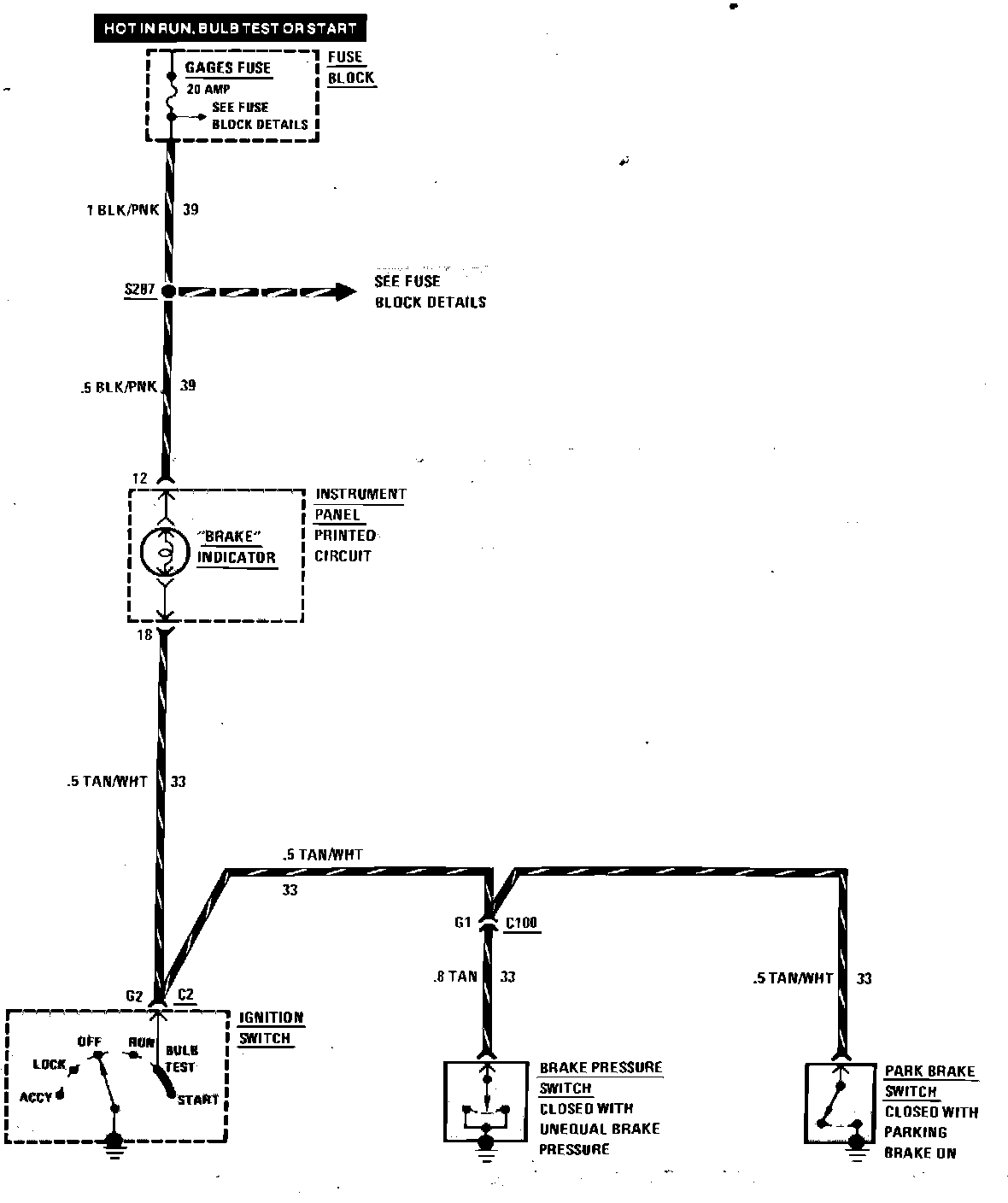

Brake Warning System Wiring Circuit:
