Home >> Pontiac >> 1986 >> Grand Prix V6-231 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> A/C Blower & Compressor Control Wiring Circuit >> Part 2 of 2

Part 2 of 2

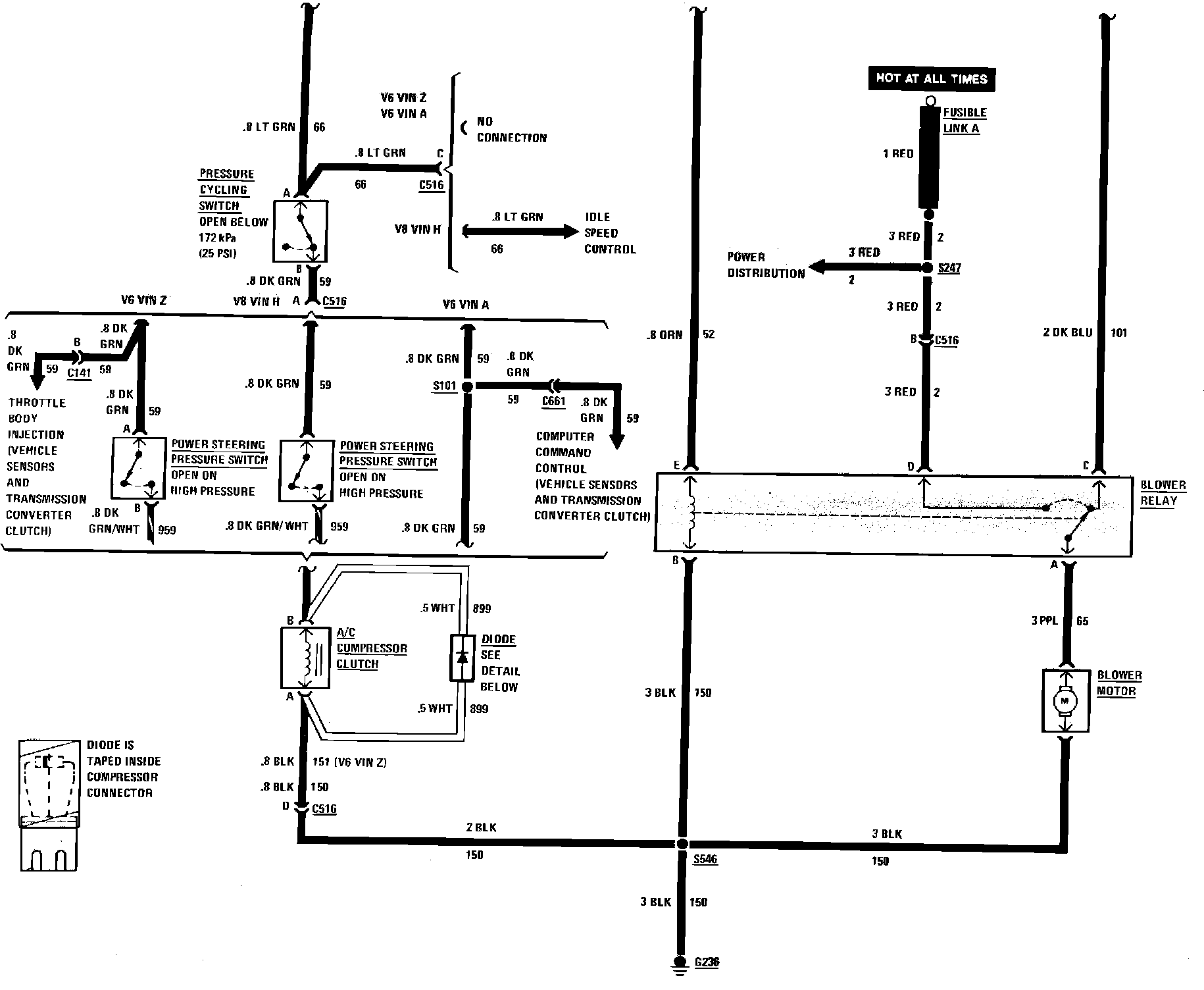

Air Conditioning Vacuum Circuit Blower & Compressor Control Wiring Circuit:
