Pontiac
>>
1986
>>
Grand Prix V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Mono System
With Mono System

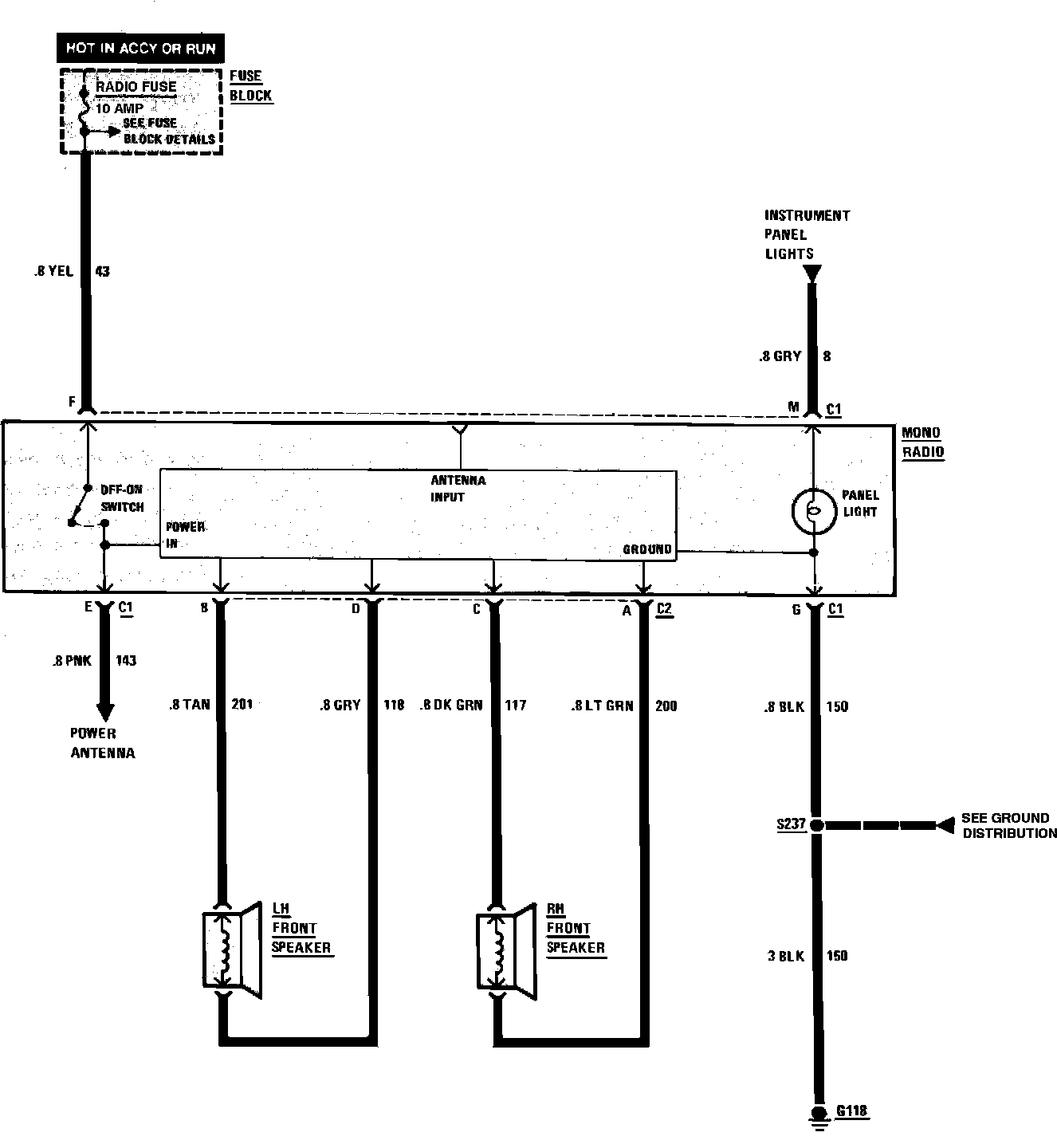

Radio Wiring Circuit (With Mono System):
