Windshield Wiper Arms - Revised

Number 86-2-11 Date 6/86
Subject: WINDSHIELD WIPER ARMS

1985 & 1986 GRAND AM

WIPER ARMS:

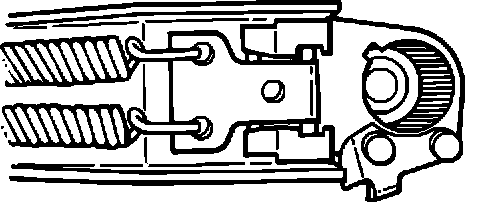

When performing any service operation that involves removal of the wiper arms, the wiper arms should be replaced if they are not the sliding latch type.. (See Illustration)

Latch type arms have been used on Grand Am's built since October of 1985. The part numbers for the latch type arms are:

R. H. 20576386
L. H. 20576387
