Power Steering - Service Manual Supplementary Pages

Number 86-3-9 Date 4/86

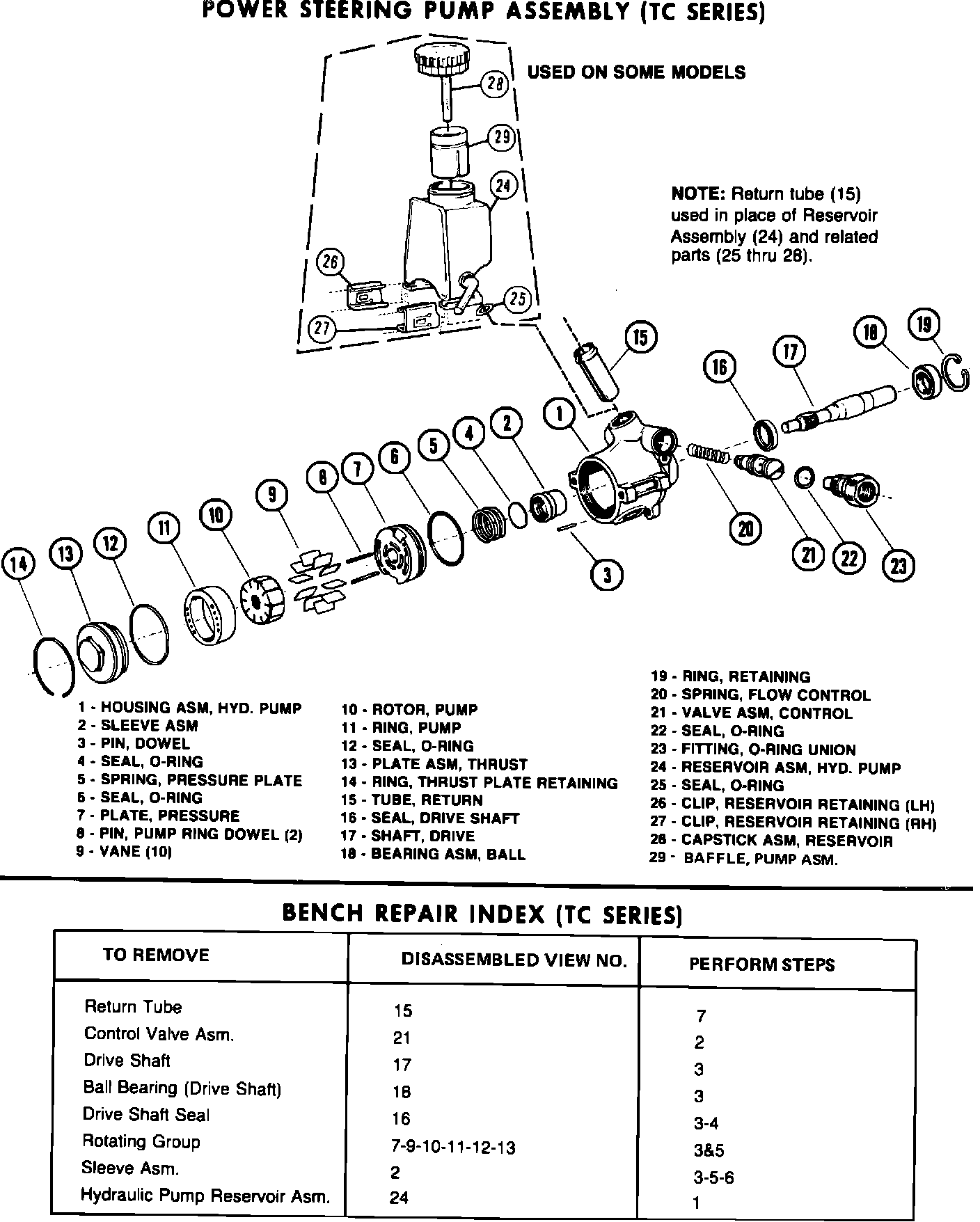

FIGURE 6 - TC SERIES POWER STEERING PUMP AND REPAIR INDEX:

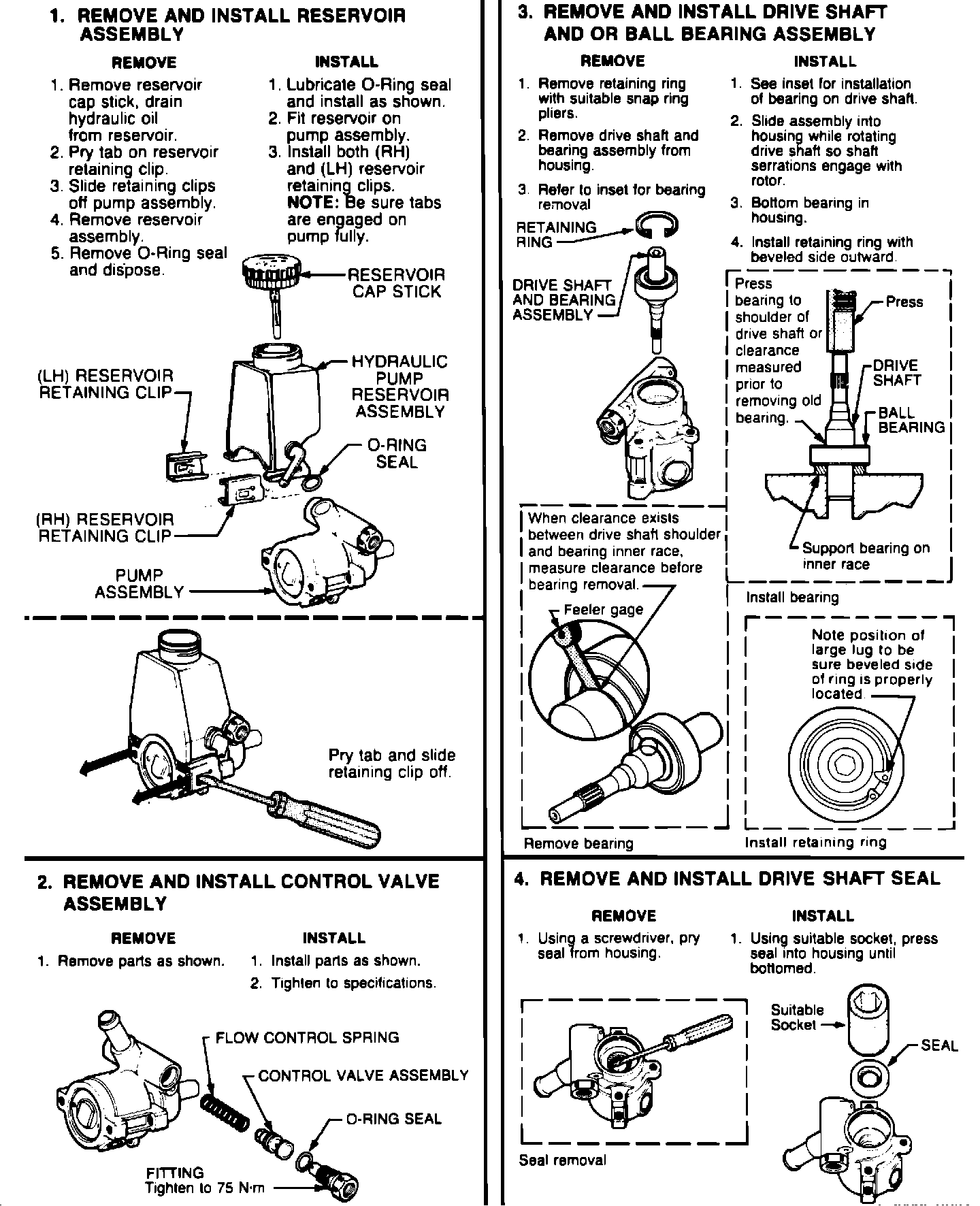

FIGURE 7 - TC SERIES POWER STEERING PUMP REPAIR:

FIGURE 8 - TC SERIES POWER STEERING PUMP REPAIR:

The attached pages are a supplement to the 1986 6000 and Grand Am Service Manuals. The attached pages belong between pages 3B3-6 and 3B3-7 in the 6000 manual, and between pages 3B3-5 and 3B3-6 in the Grand Am manual.
