Instrument Panel Cluster - Correct Connector Location

Number 86-8-22 Date 11/86

Subject: INSTRUMENT PANEL CLUSTER CONNECTOR


1986 GRAND AM

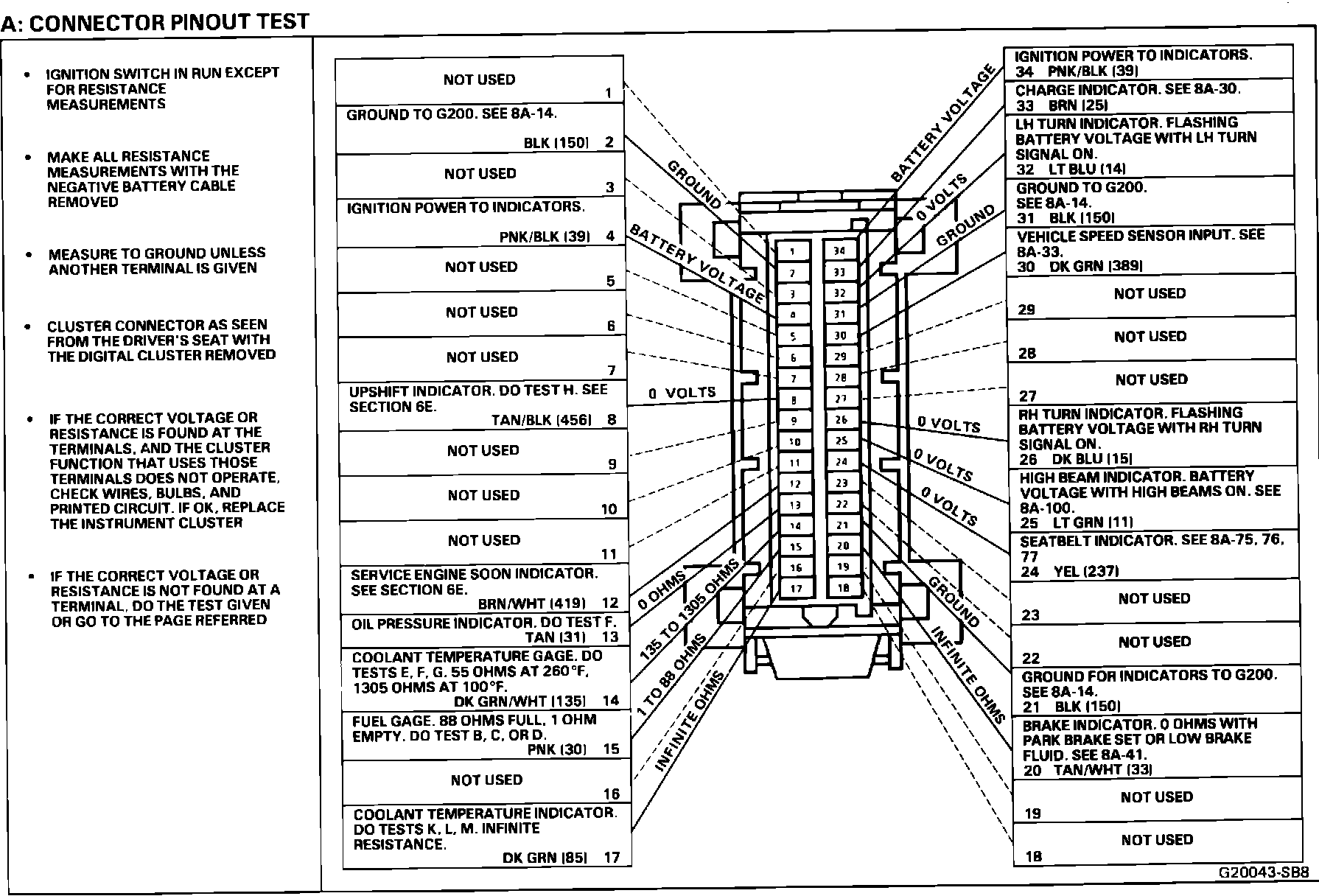

FIGURE 1 - INDICATORS CLUSTER:

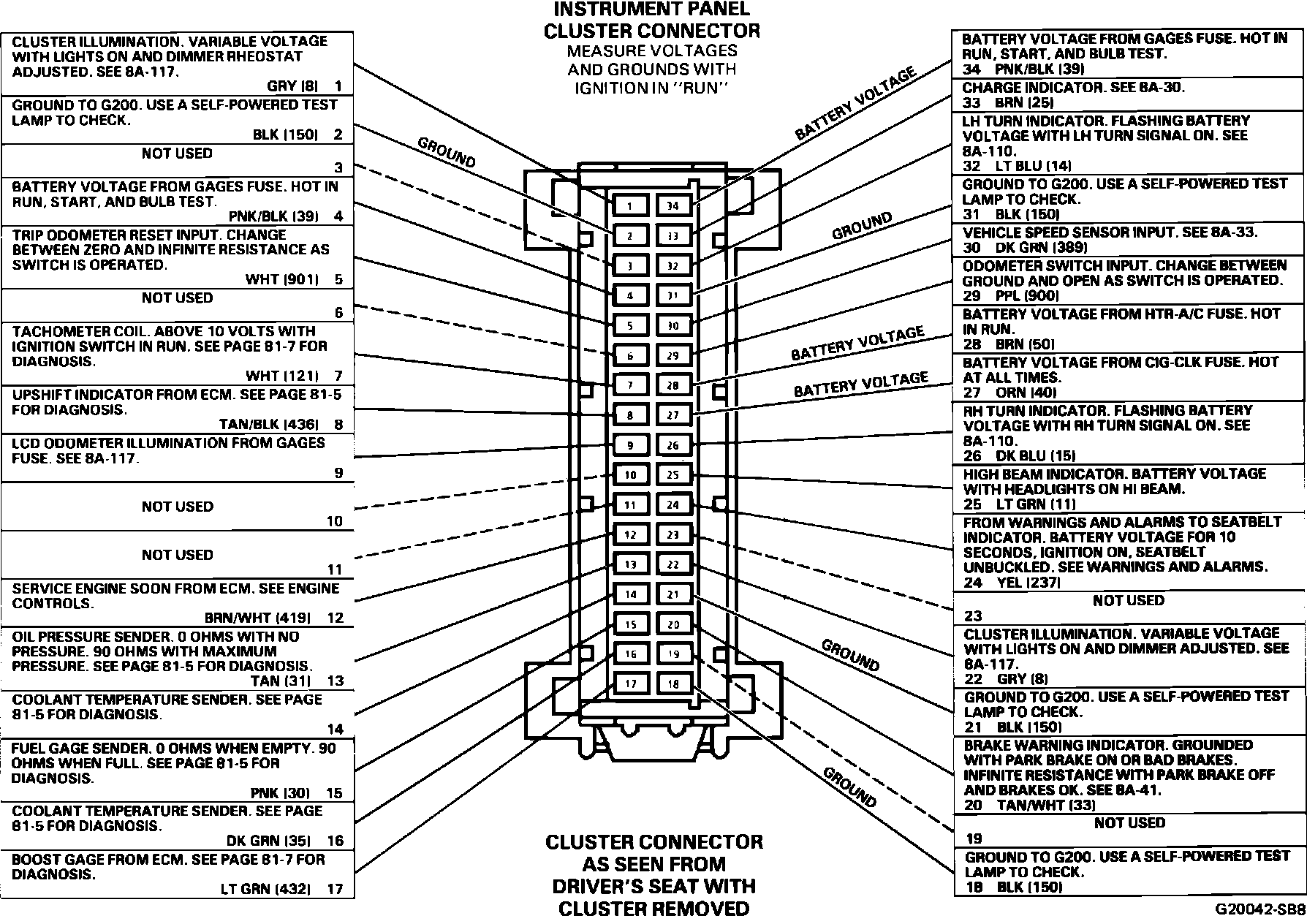

FIGURE 2 - GAUGE CLUSTER:

Pages 8A-80-4 and 8A-81-4 of the 1986 Grand Am Service Manual are incorrect. The pictures indicate that as seen from the drivers seat, terminals #17 and #18 are located at the top of the connector. This is incorrect. Terminals #1 and #34 are located at the top of the connectors. See Figure 1 for the indicators cluster and Figure 2 for the gauge cluster. This has been corrected for the 1987 Grand Am Service Manual.
