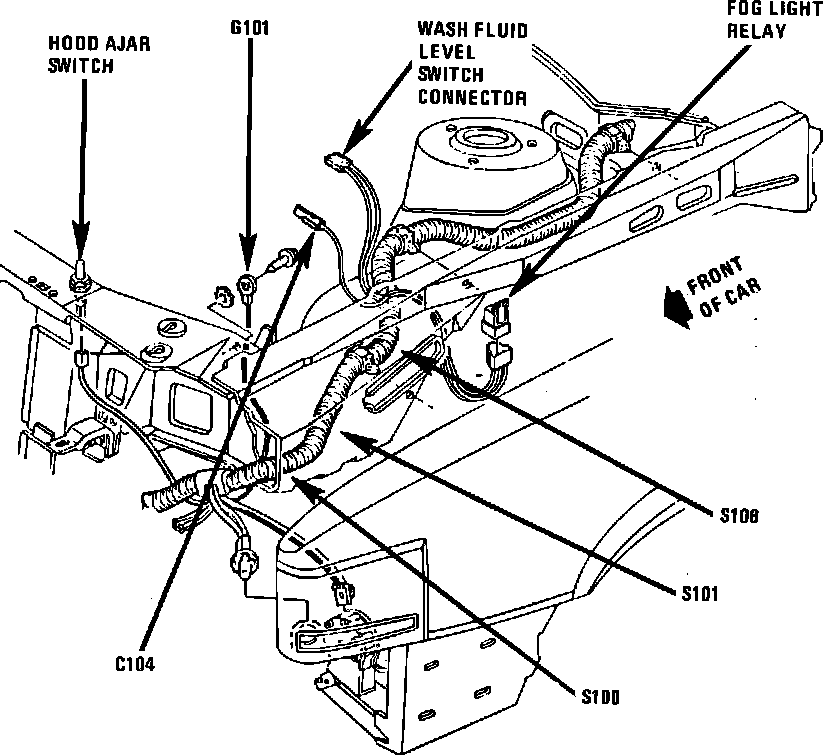

Fog/Driving Lamp Relay: Locations

LH Front Corner Of Engine Compartment.:




LH Inner Fender Panel On Front Of Shock Tower

Applicable to: 1986 Grand Am
