Pontiac
>>
1986
>>
Grand AM V6-181 3.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Map Light
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

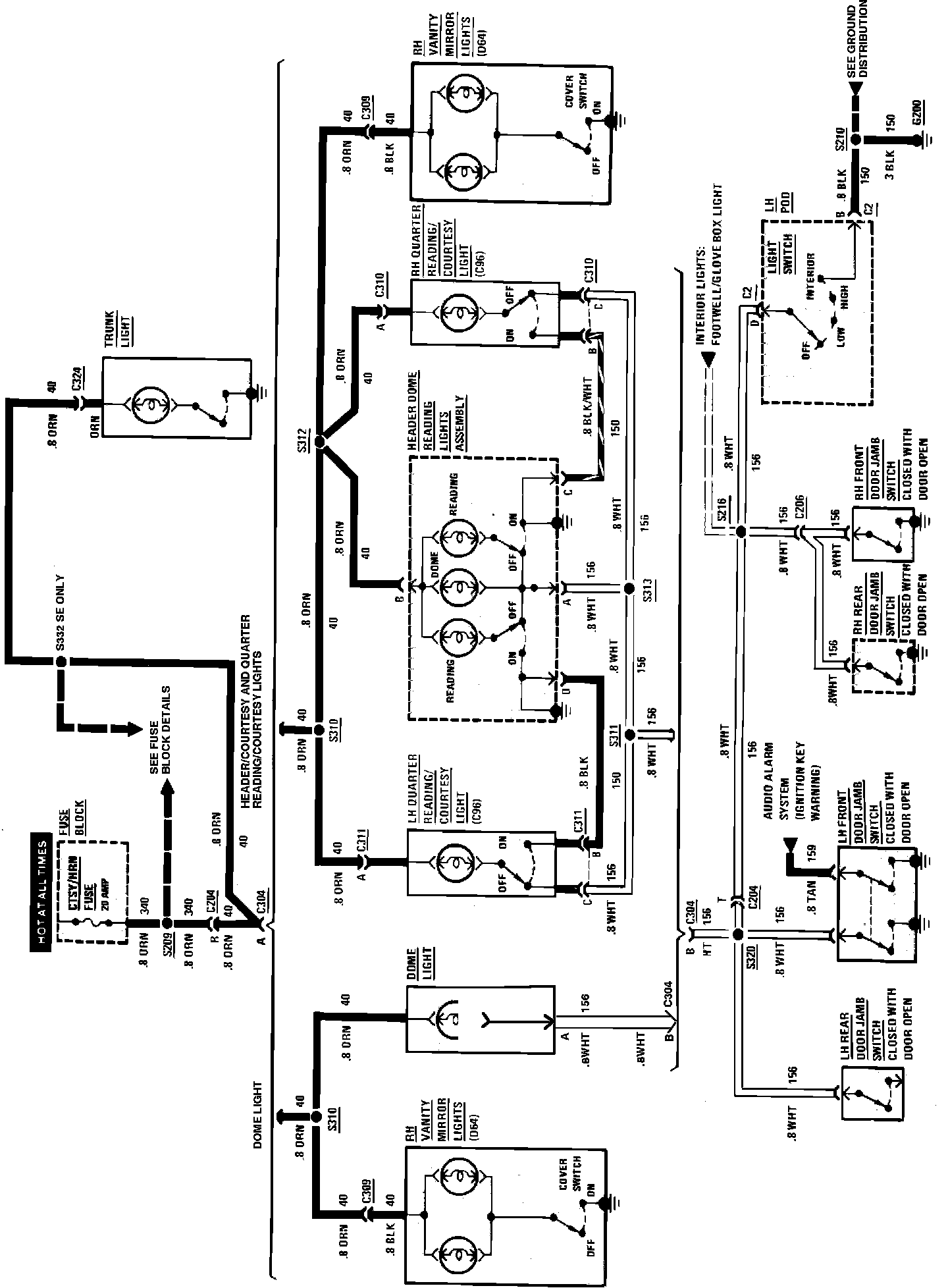

Interior Lights Wiring Circuit (Dome, Reading, Trunk, Vanity):
