Home >> Pontiac >> 1986 >> Grand AM V6-181 3.0L >> Repair and Diagnosis >> Diagrams >> Components >> Sensors >> Vehicle Speed Sensor >> Automatic Transaxle

Automatic Transaxle

LH Front Corner Of Engine Compartment.:

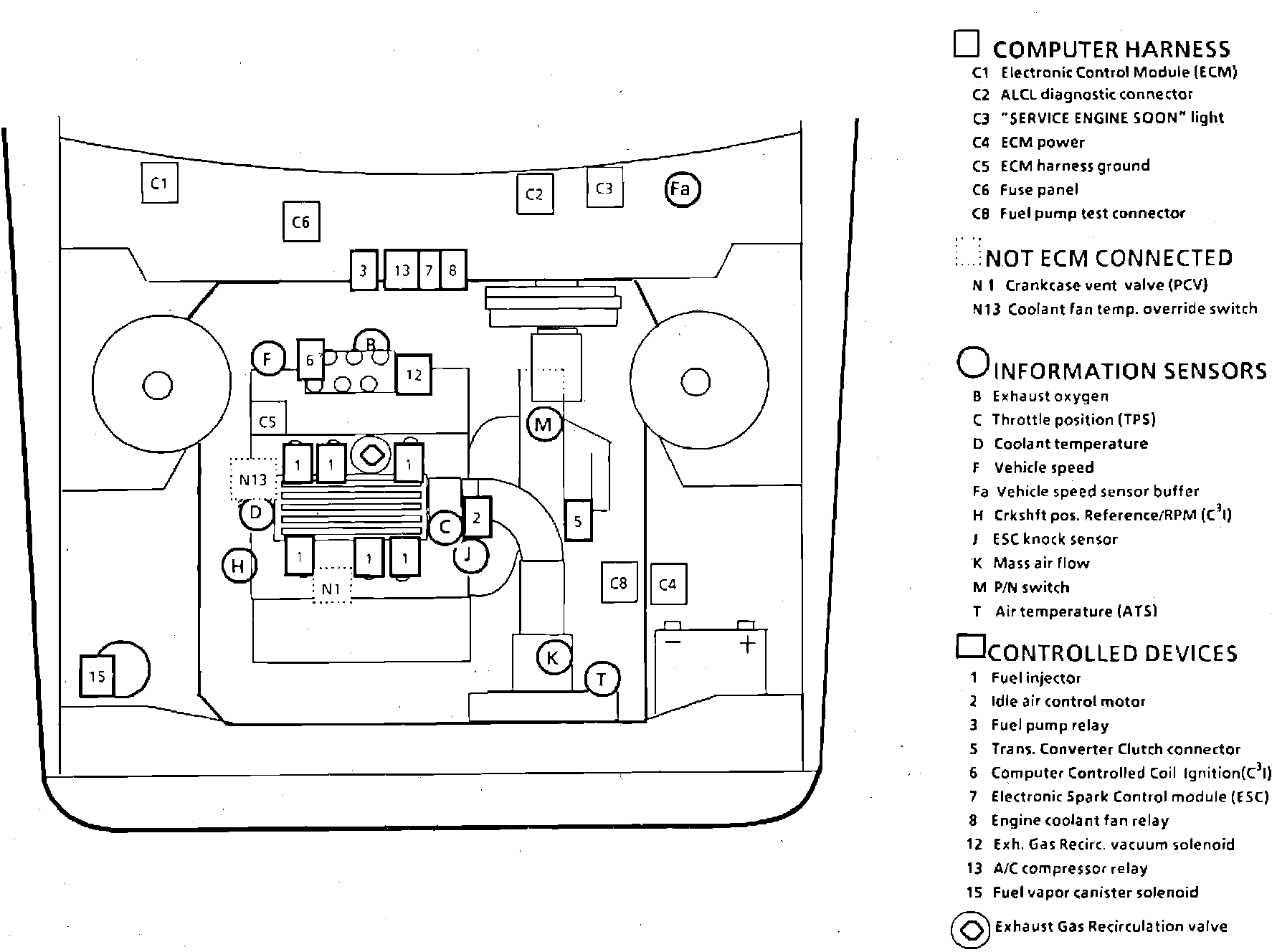

Underhood Component Location.:





At LH Front Corner Of Engine Compartment

Applicable to: 1986 Grand Am (V6-181/3.0L)
