Electrical Diagrams

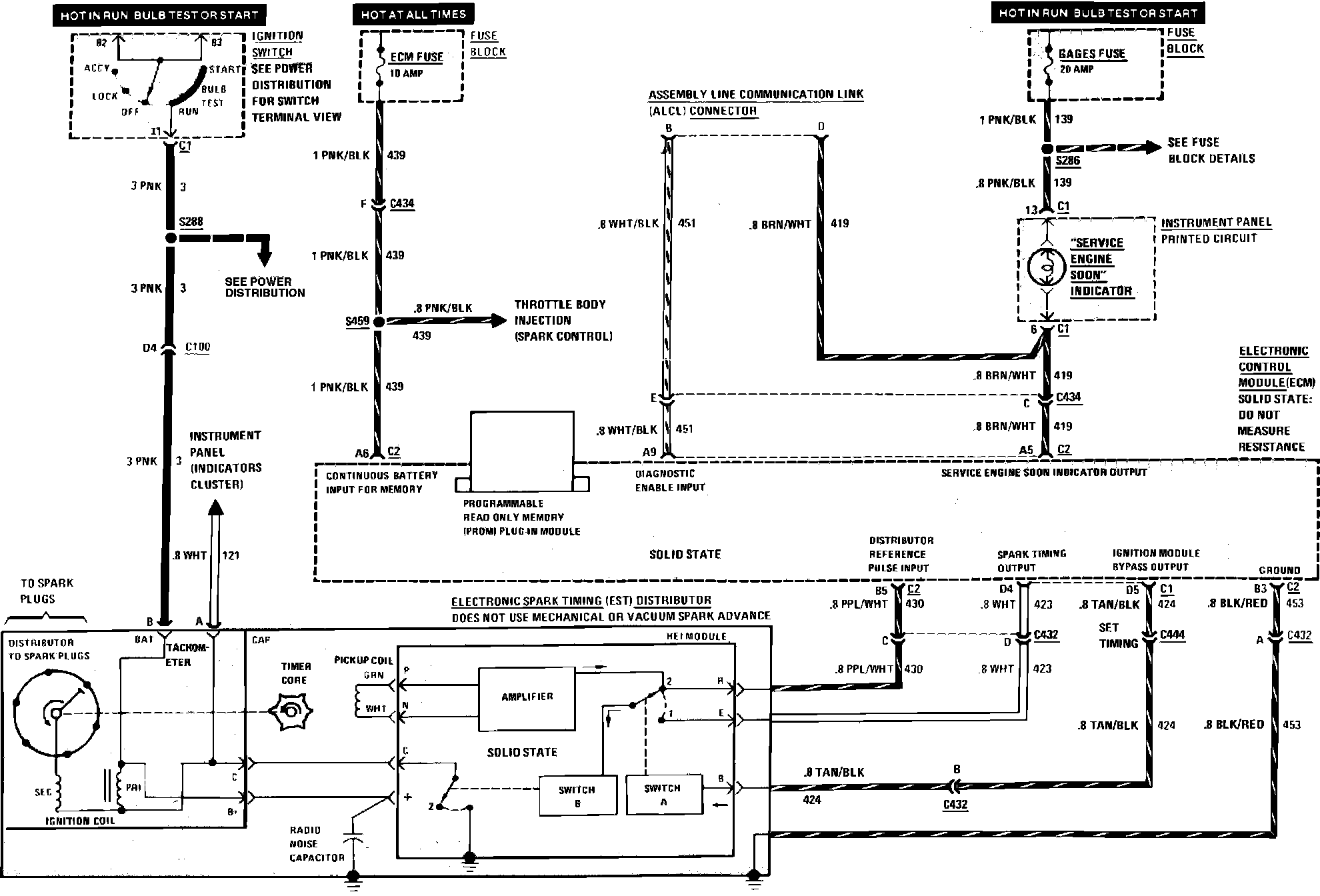

Throttle Body Injection Wiring Circuit (Ignition & Service Engine Soon Indicator):
