Service Procedure

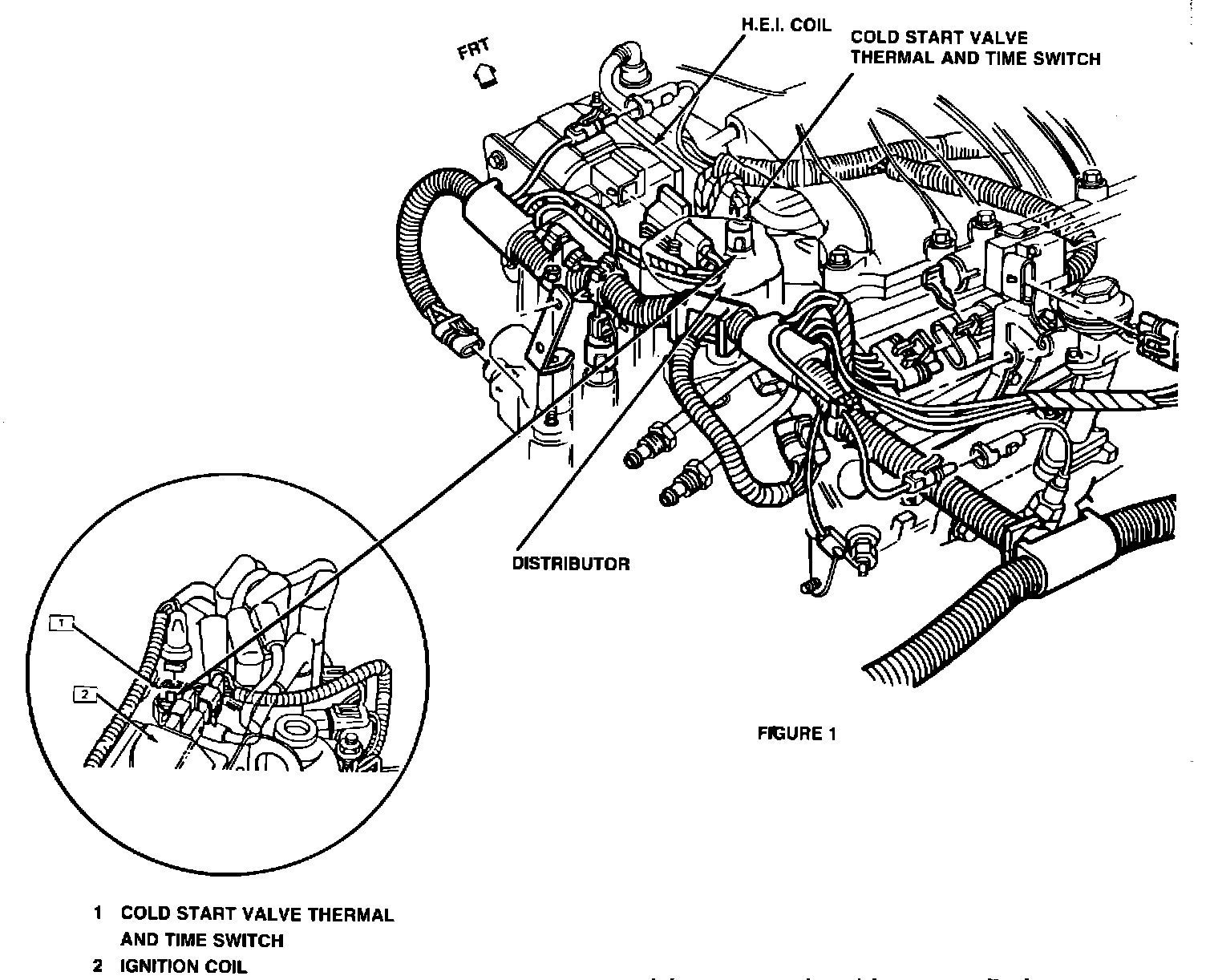

FIGURE 1 - ENGINE CONNECTOR LOCATION:

1. Open hood.

2. Disconnect negative battery cable.

3. Remove connector from cold start valve thermal and time switch (see Figure 1).

FIGURE 2 - TERMINAL:

4. Pull rubber boot back from terminal and inspect for proper wire routing (see Figure 2). If correct, go to Step 8.

5. Remove terminals from connector body.

6. Reinstall terminals, making sure the position is the same as shown in Figure 2.

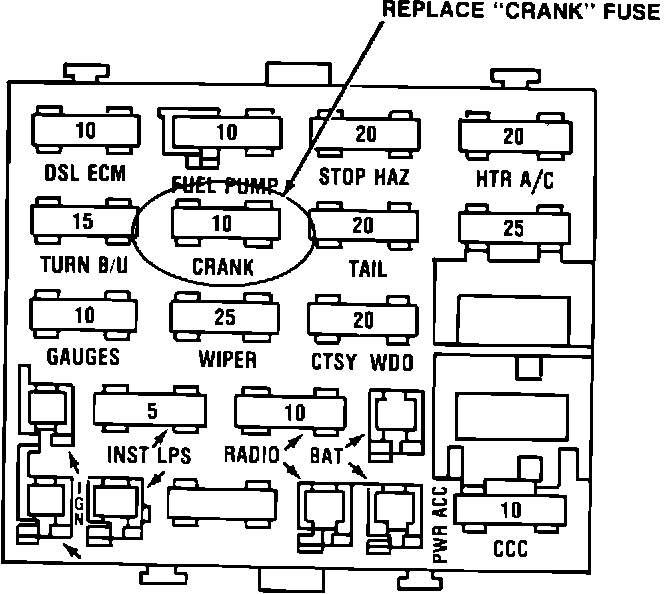

FIGURE 3 - FUSE BOX:

7. Replace the "crank" fuse (see Figure 3).

8. Reconnect negative battery cable.
9. Start engine; then check "crank" fuse to assure correct wiring.

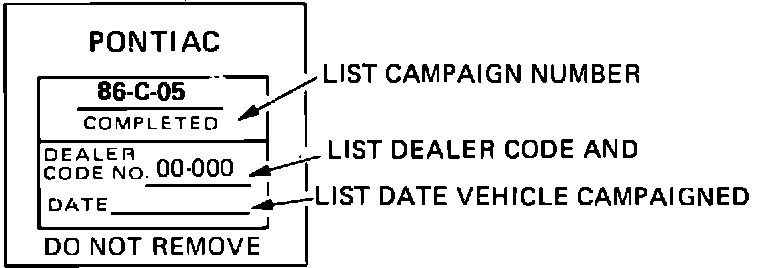

CAMPAIGN IDENTIFICATION LABEL:

10. Install Campaign Identification Label and close hood.


CAMPAIGN IDENTIFICATION LABEL

Each vehicle modified in accordance with the instructions outlined in this Product Campaign Bulletin will require a "Campaign Identification Label". Each label provides a space to include the campaign number, the five digit dealer code of the dealer performing the campaign service, and the date vehicle was campaigned. This information may be inserted with a typewriter or ballpoint pen. Install the label only on a clean, dry surface of the radiator baffle where it is readily visible. Close hood.. (Additional campaign labels are available on stationery order as Form 7901-709).
