Wiper Arm - Revised
Number 86-10-13 Date 8/86Subject: WIPER ARMS
1986 6000 AND STE MODELS
Some late model 1986 6000 and STE vehicles are equipped with a new style wiper arm. The new wiper arm provides better retention of the wiper arm to the splined transmission shaft end..
WIPER ARMS:

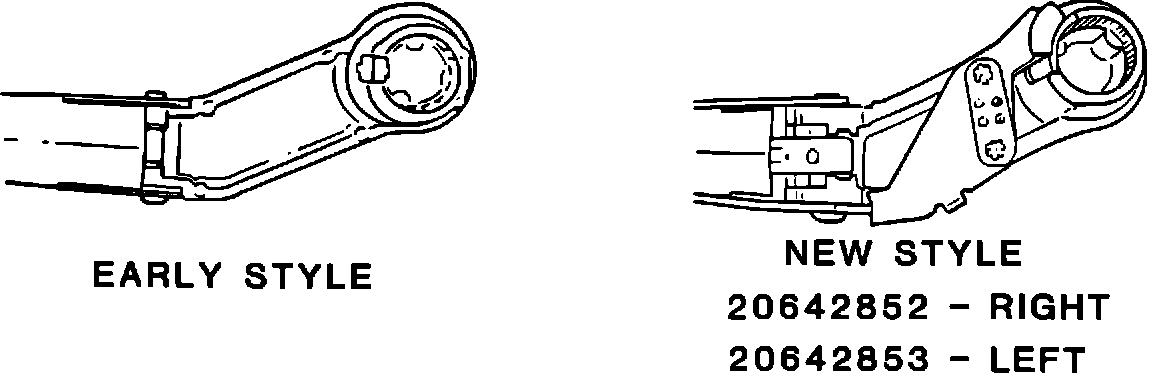

When performing any service operation that involves removal of the wiper arms, the wiper arms should be replaced if they are not the sliding latch type (refer to illustration).
The vehicles are built at Oshawa and Tarrytown Plants, and the VIN breakpoints are listed as follows:
Oshawa G9289155
Tarrytown GT269363
