Home >> Pontiac >> 1986 >> 6000 V6-173 2.8L VIN X 2-bbl >> Repair and Diagnosis >> Powertrain Management >> Relays and Modules - Powertrain Management >> Relays and Modules - Emission Control Systems >> EFE Relay >> Locations

EFE Relay: Locations

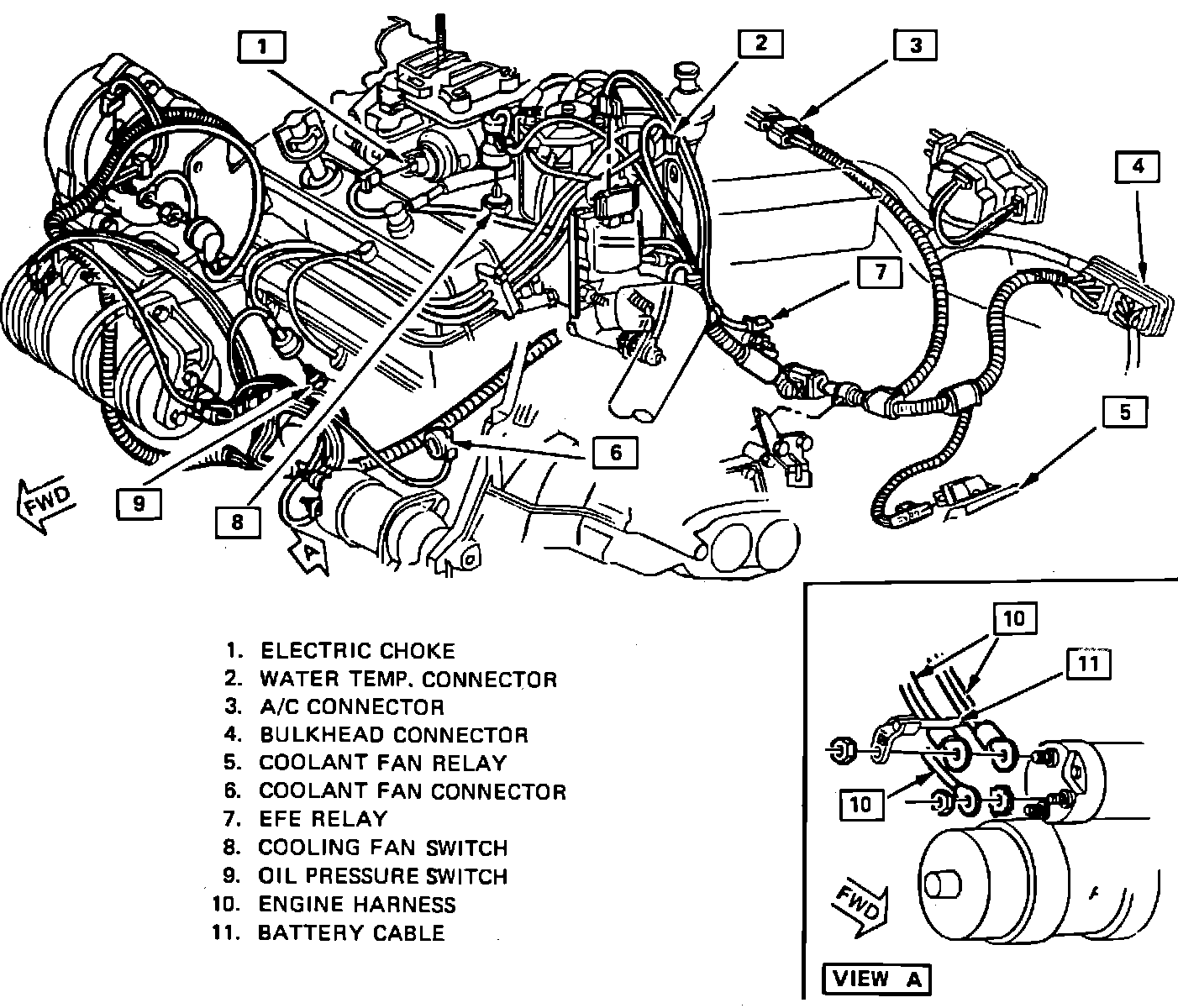

Engine Wire Harness Front View.:




Rear Of Engine, Taped To Harness

Applicable to: V6-173, VIN X Engine
