Home
>>
Pontiac
>>
1986
>>
6000 V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Engine Circuits 6000 STE
Engine Circuits 6000 STE

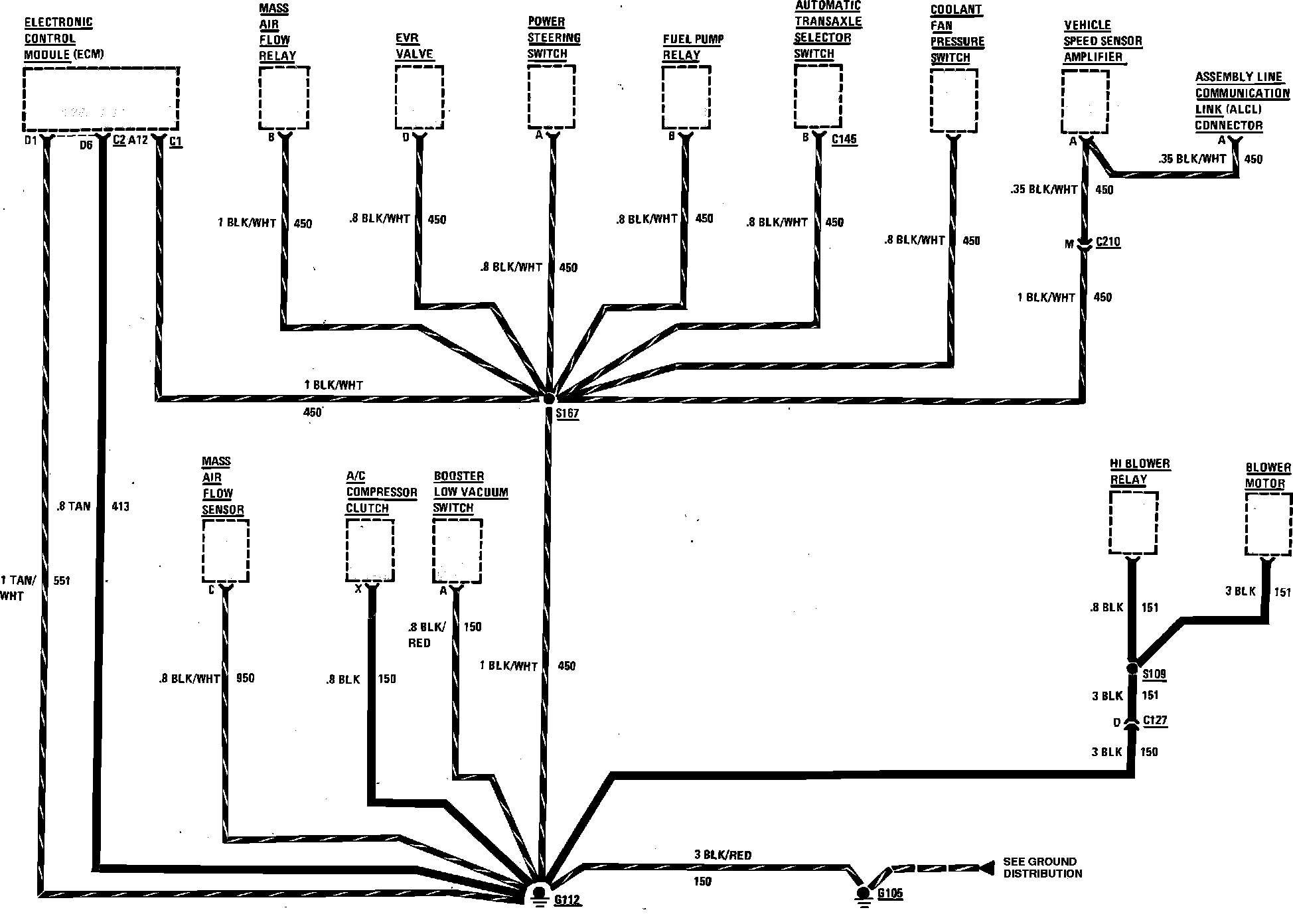

Ground Distribution (Engine Circuits) 6000 STE:
