Home
>>
Pontiac
>>
1986
>>
6000 V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
Engine Circuit
Engine Circuit

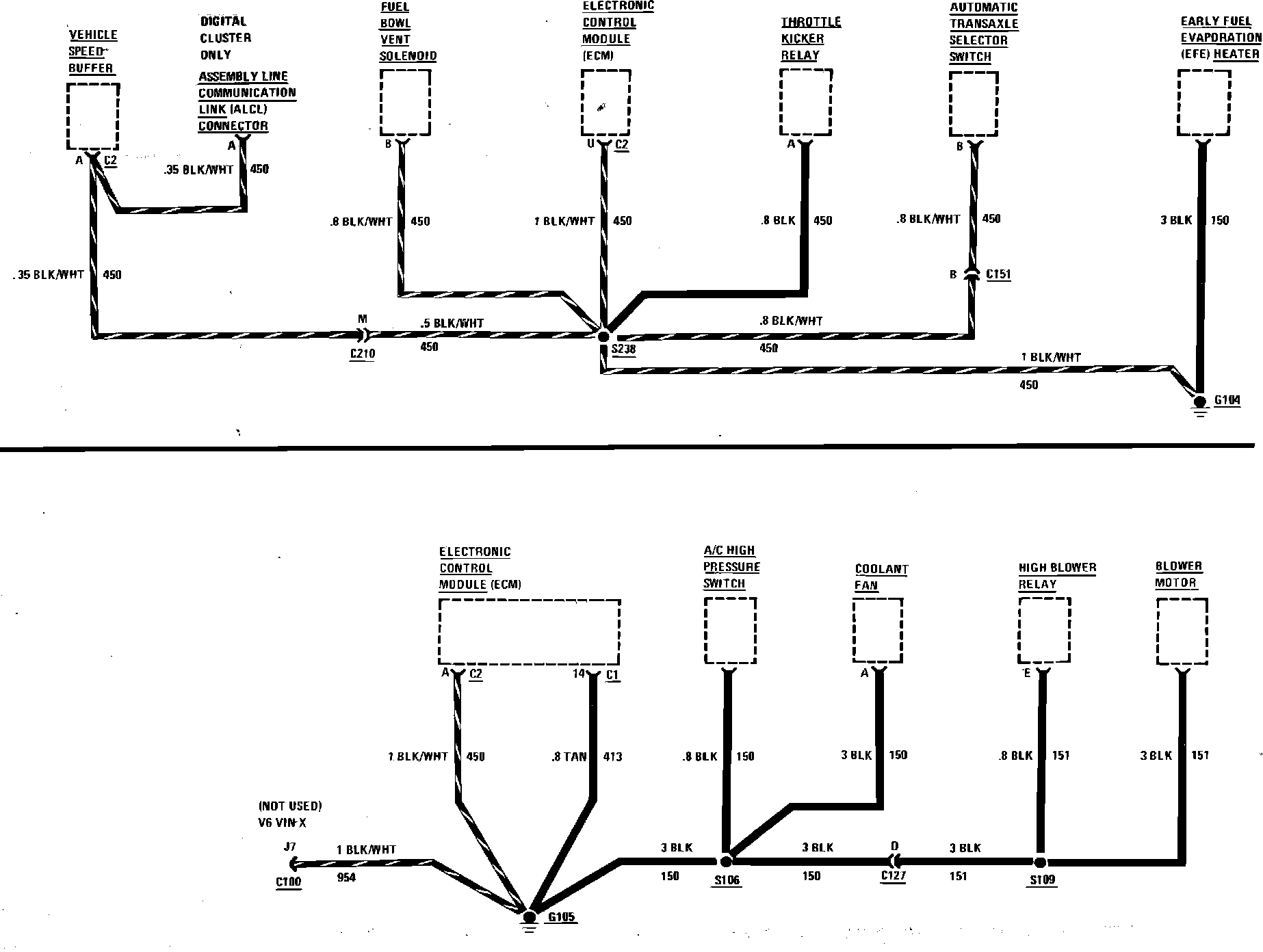

Ground Distribution (Engine Circuits). VIN X Exc. STE:
