Home >> Pontiac >> 1986 >> 6000 V6-173 2.8L VIN X 2-bbl >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Diagrams >> Electrical Diagrams >> Less A/C

Less A/C

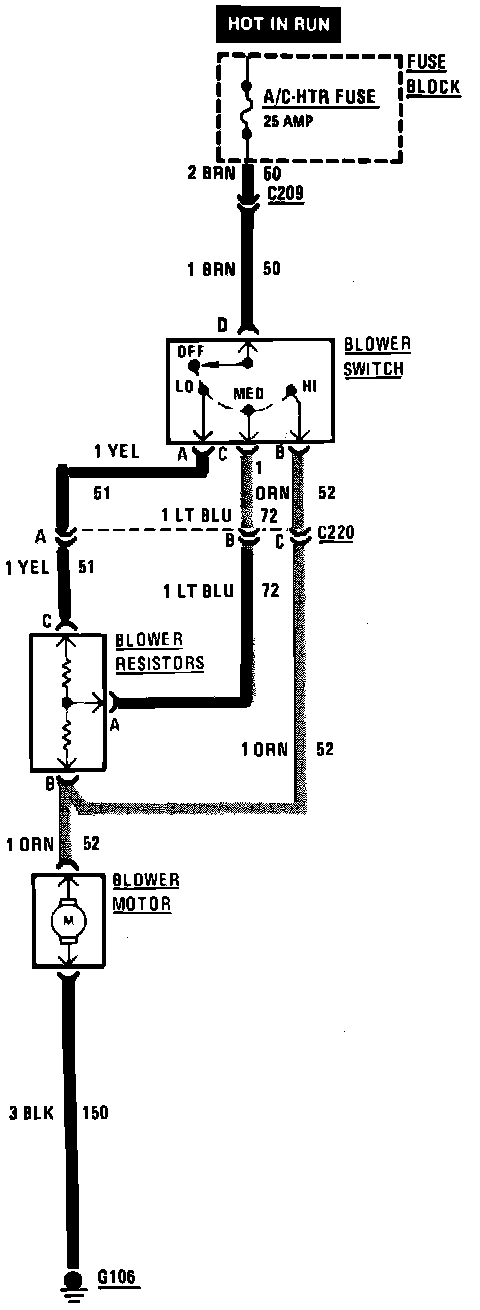

Blower Circuit Less A/C:
