Pontiac
>>
1986
>>
6000 V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wheel Speed Sensor
Wheel Speed Sensor

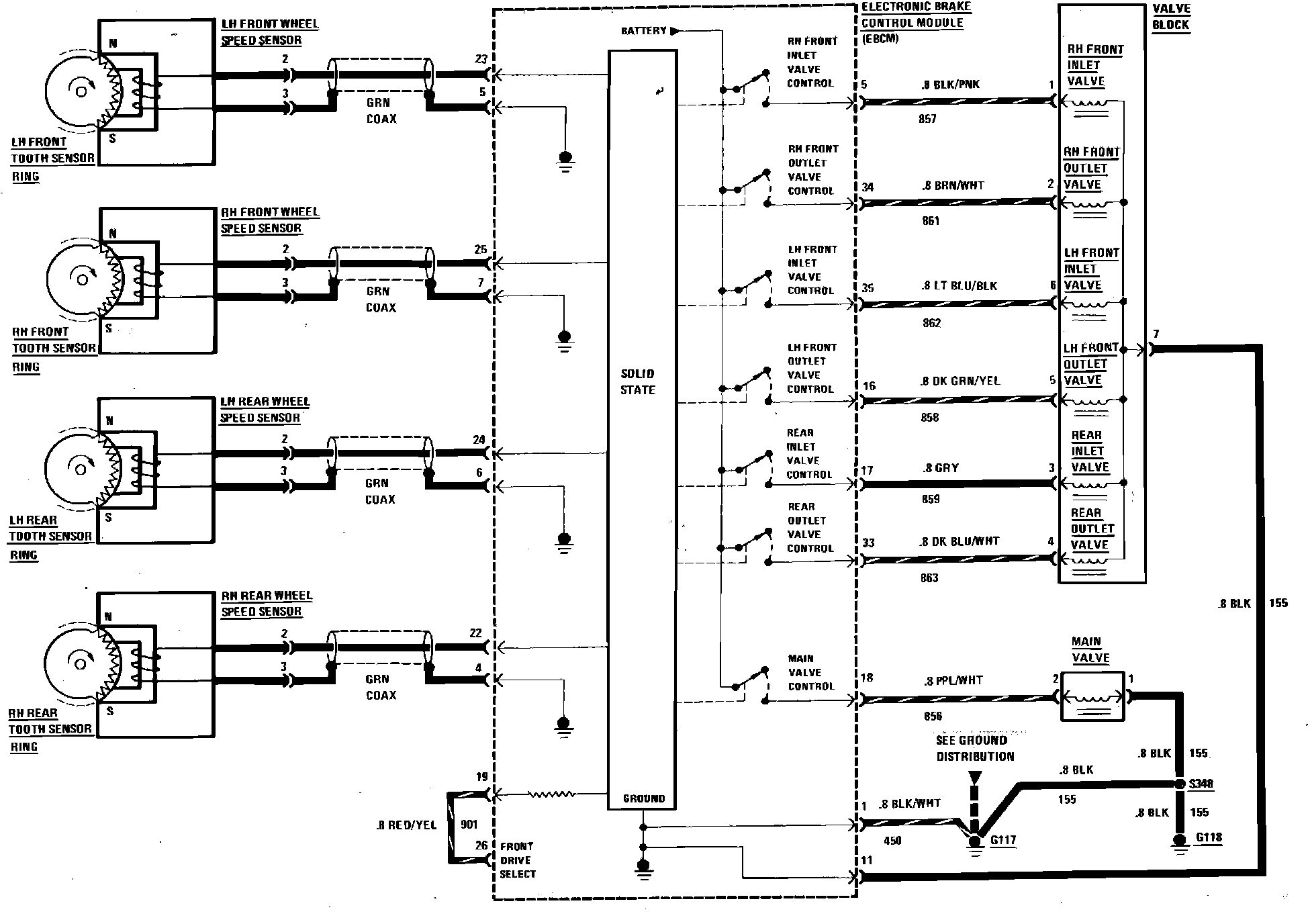

Anti-Lock Brake System (Wheel Sensor & Valves):
