Home >> Pontiac >> 1986 >> 6000 V6-173 2.8L VIN X 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Ignition System & Service Engine Soon (SES) Indicator >> STE

STE

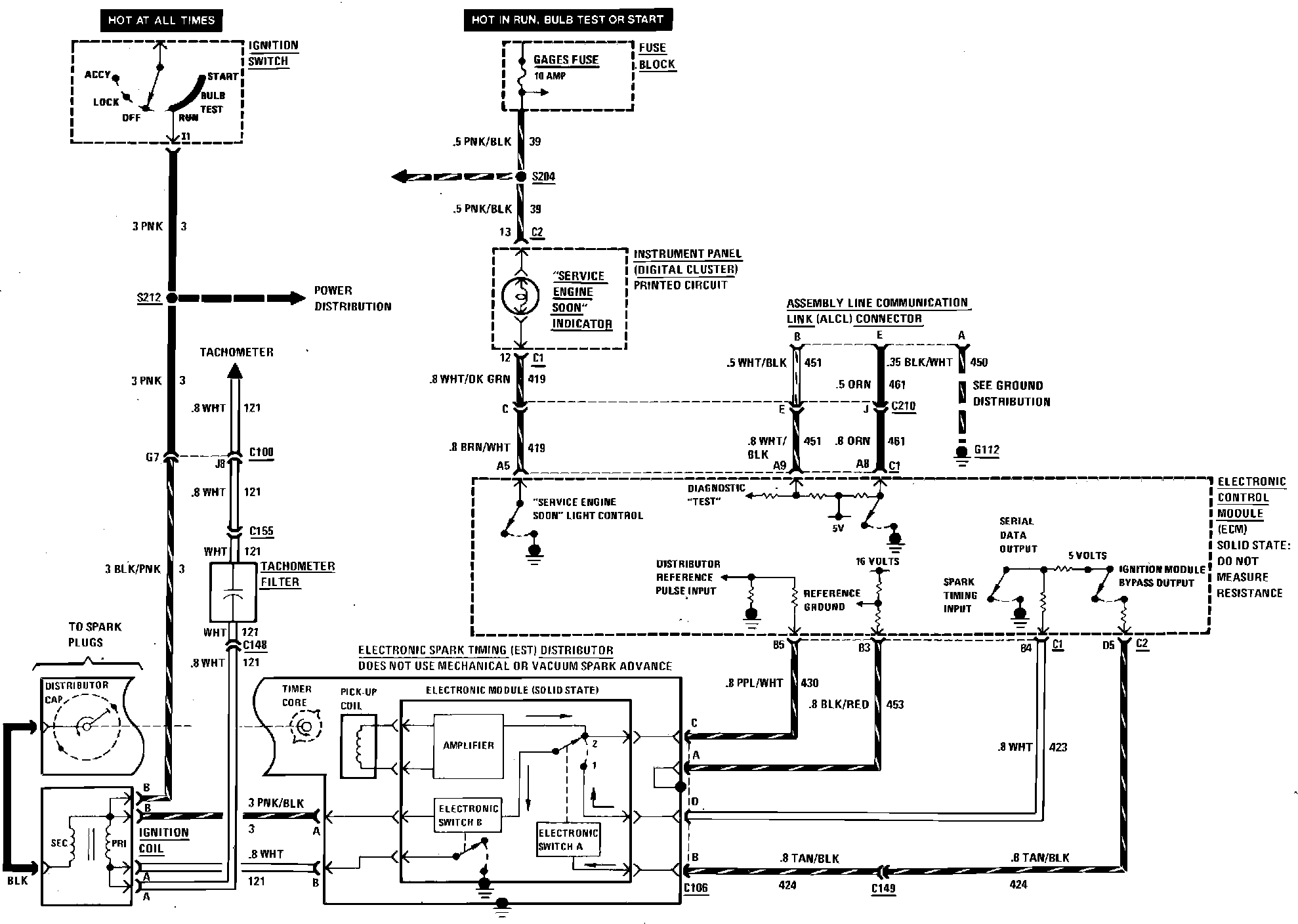

Multi-Point Fuel Injection Wiring Circuit (Ignition & Service Engine Soon Lamp) STE VIN W:
