Home >> Pontiac >> 1986 >> 6000 V6-173 2.8L VIN X 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Fuel Control & Fuel Injectors >> STE

STE

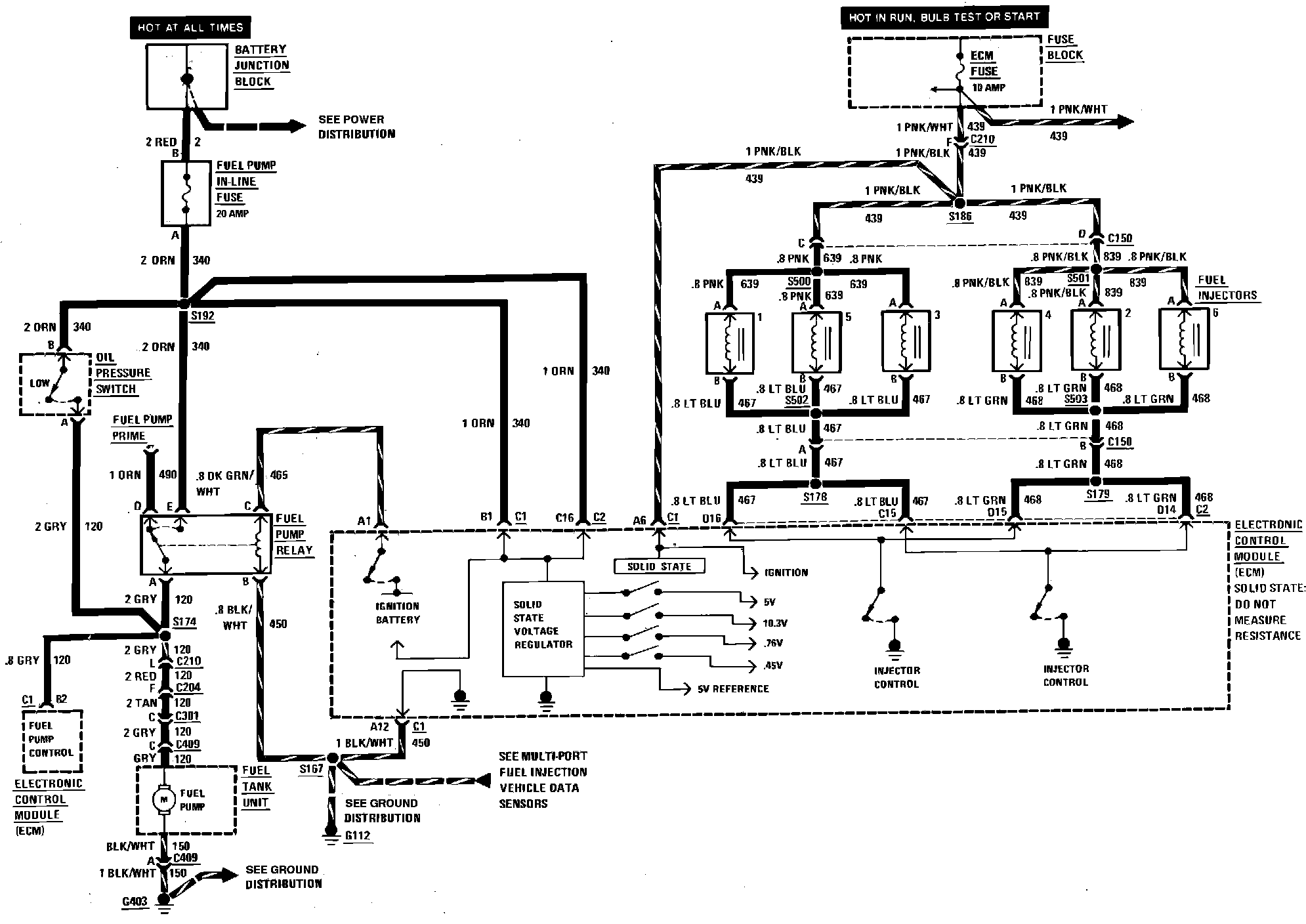

Multi-Point Fuel Injection (Fuel Control & Fuel Injectors). STE VIN W:
