Home >> Pontiac >> 1986 >> 6000 V6-173 2.8L VIN X 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> System Diagram >> A/C Compressor Controls >> 6000 STE >> Part 2 of 2

Part 2 of 2

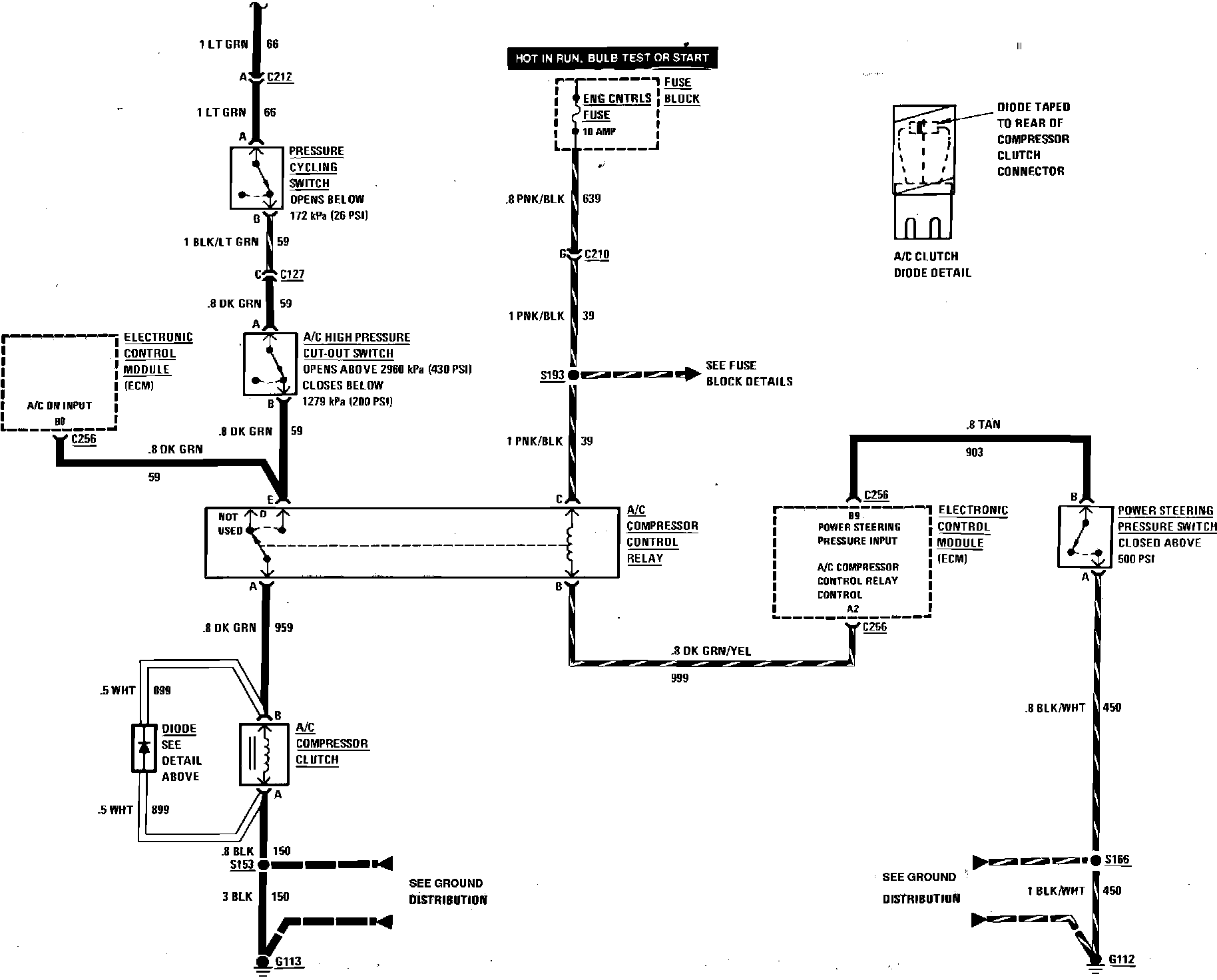

Air Conditioning Compressor (Part 2 of 2):
