Pontiac
>>
1986
>>
6000 V6-173 2.8L VIN X 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Port Fuel Injection
With Port Fuel Injection

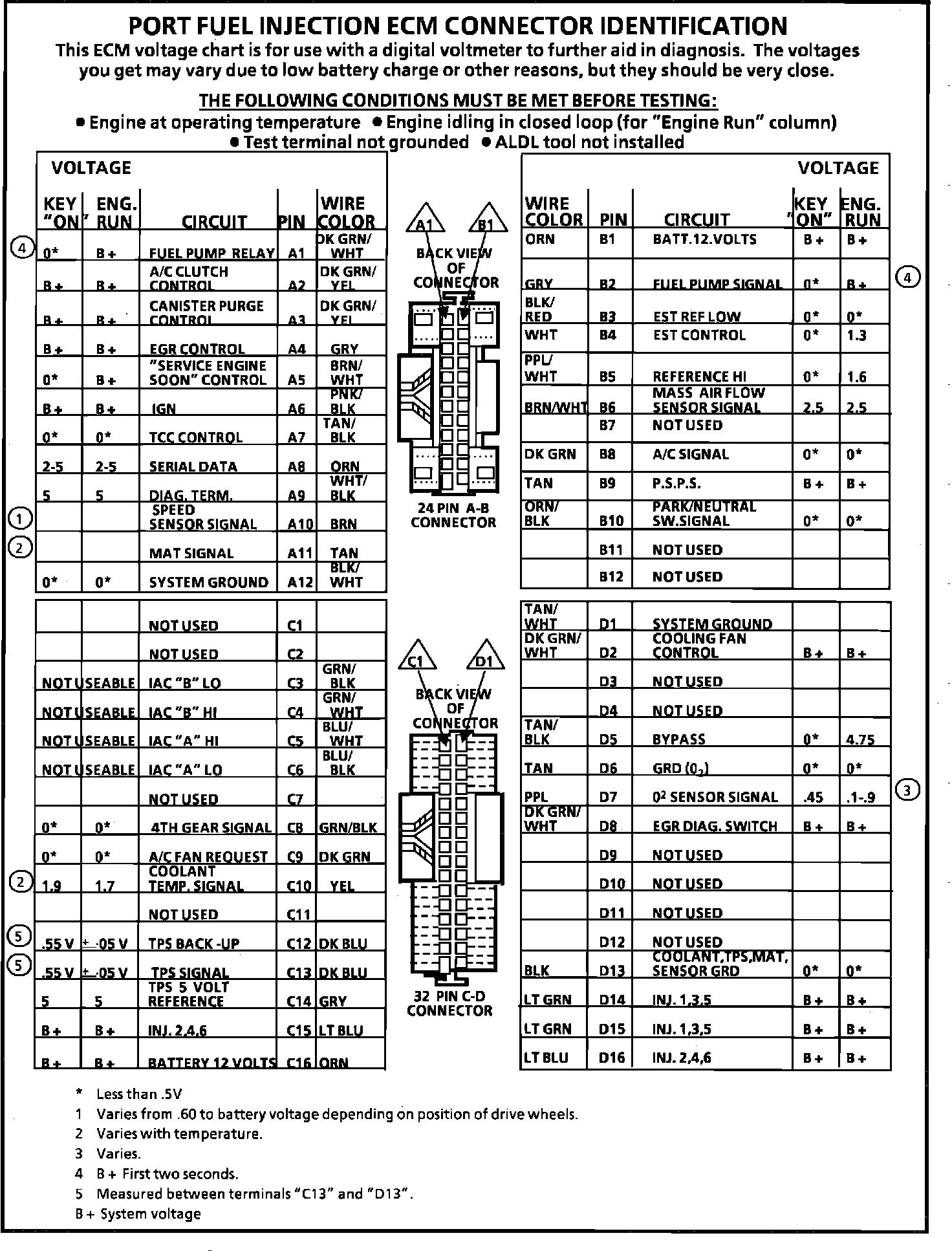

ECM Connector Terminal End View:
