Pontiac
>>
1985
>>
J2000/Sunbird L4-121 2.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Controls
>>
Fuel Control
>>
Without Air Conditioning
Without Air Conditioning

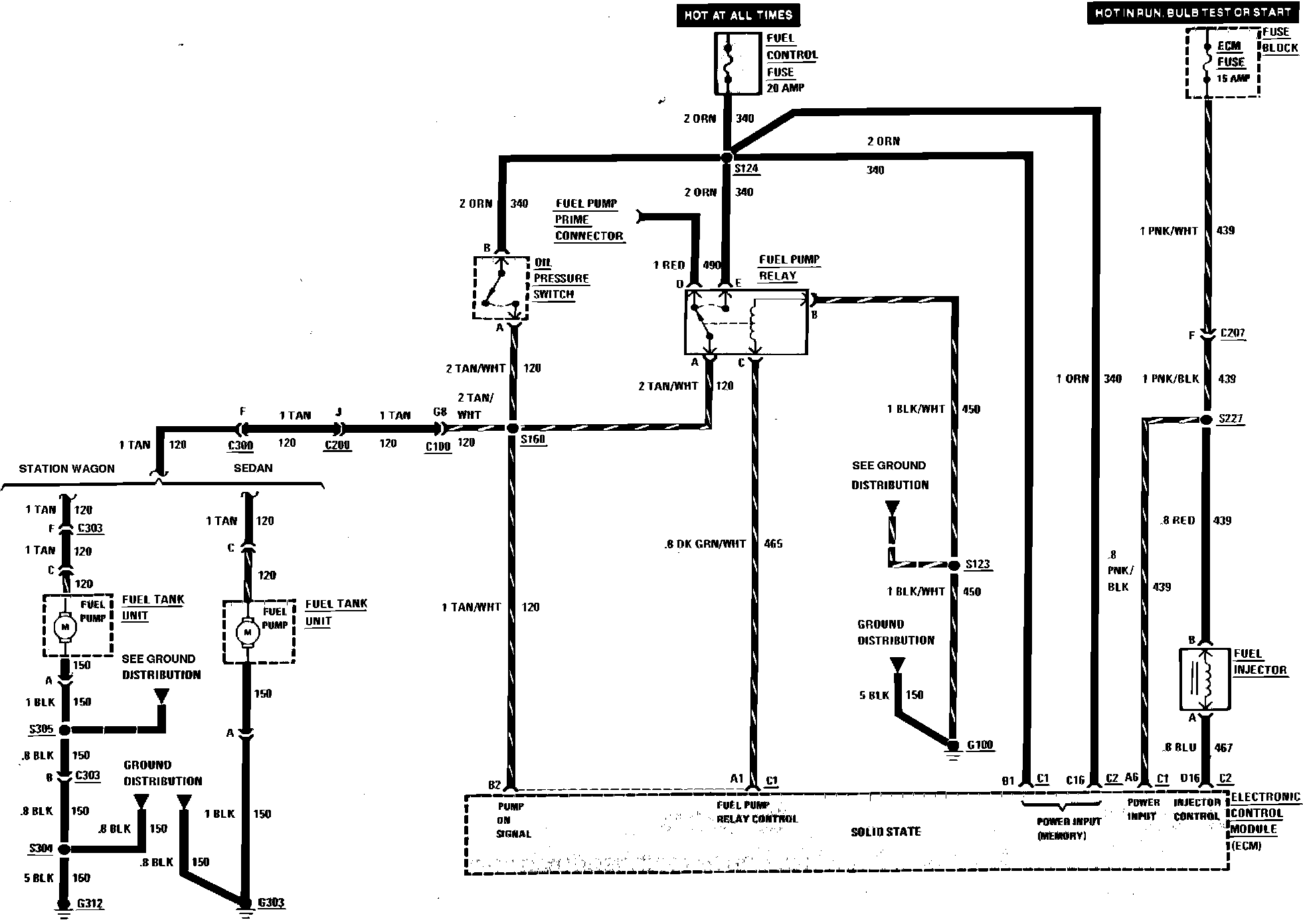

Electronic Fuel Injection (Fuel Control Without Air Conditioning) Wiring Circuit:
