Home
>>
Pontiac
>>
1983
>>
Parisienne V8-350 5.7L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Control & Glow Plugs
Fuel Control & Glow Plugs

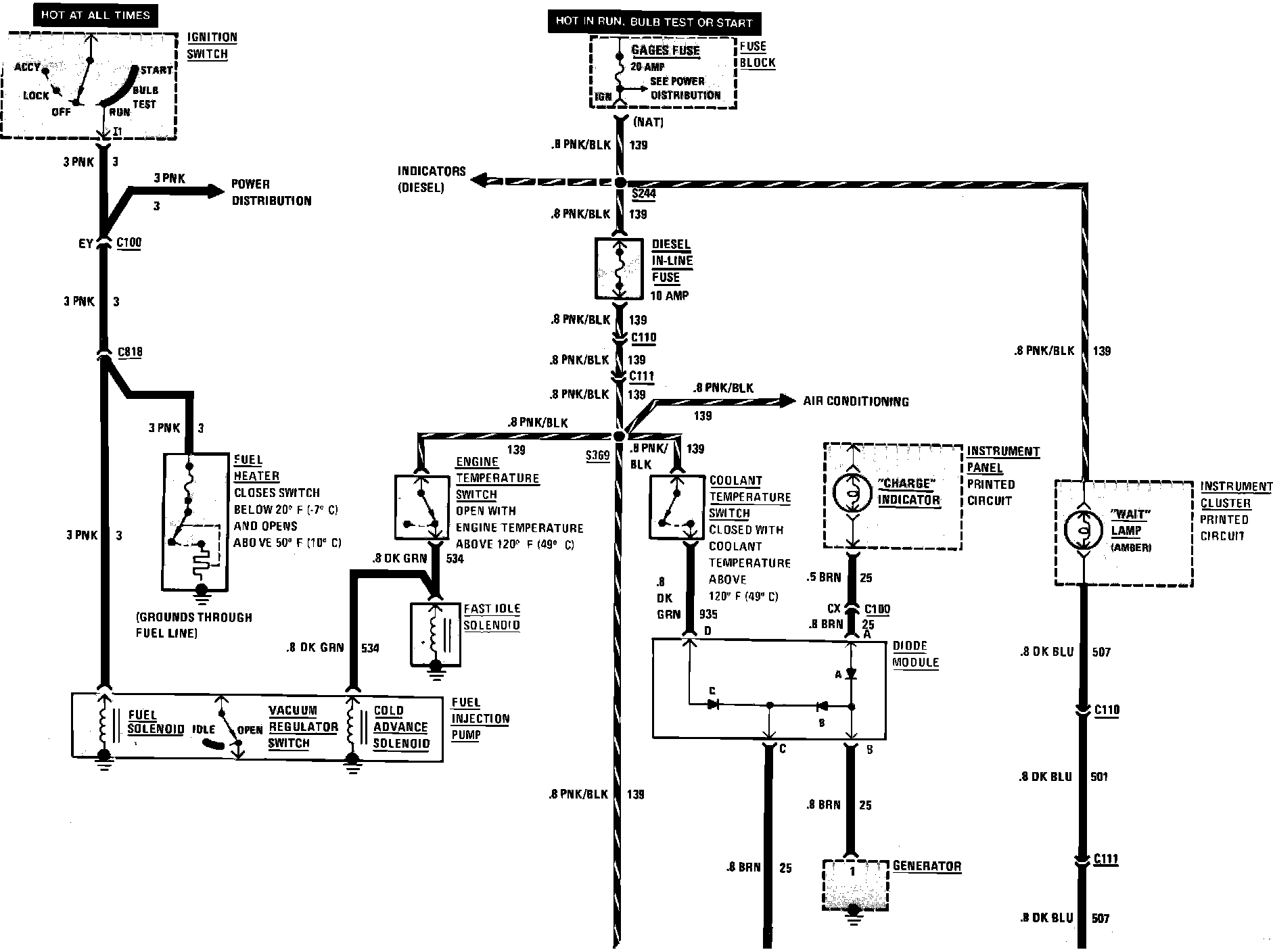

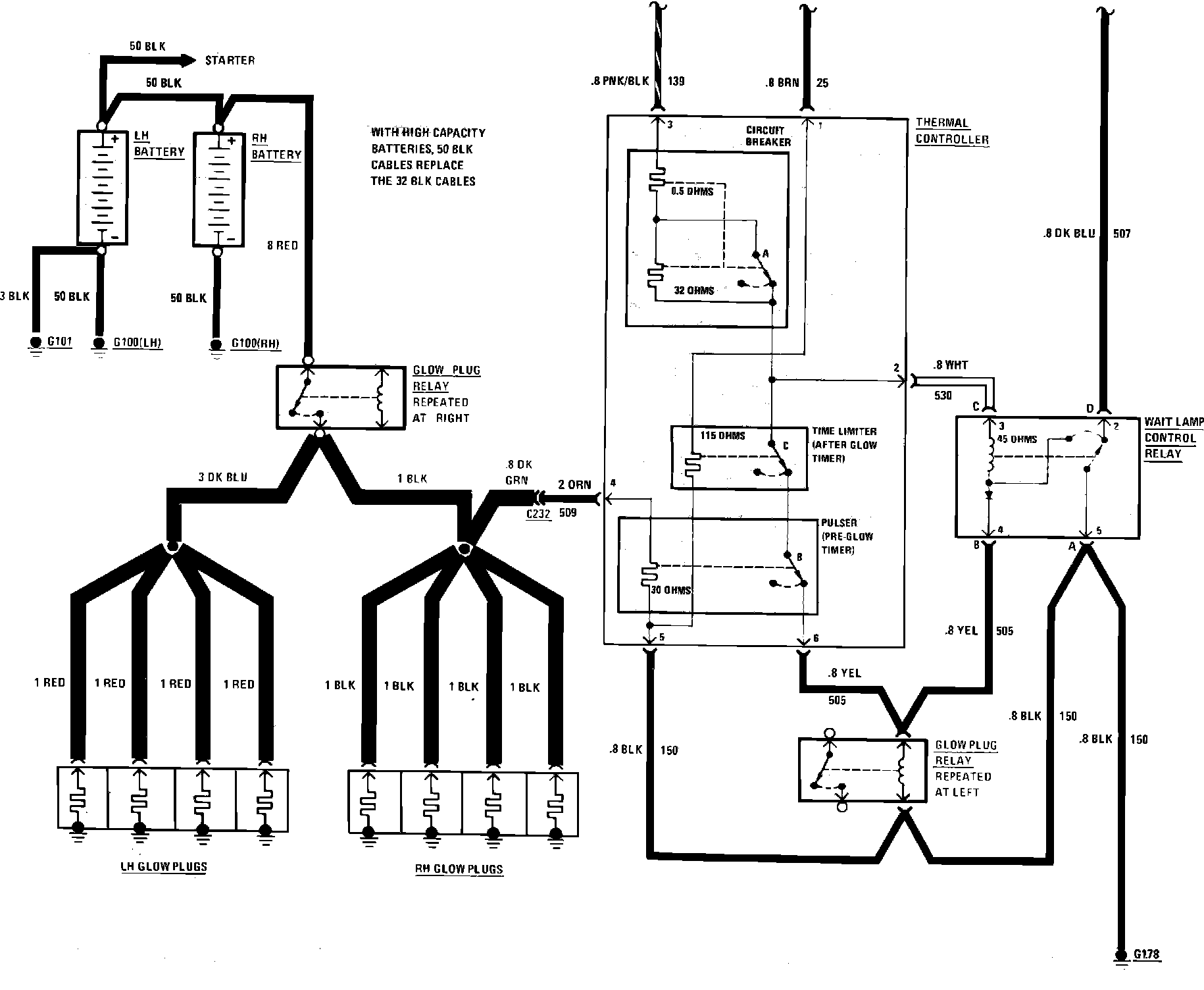

Diesel Engine Fuel Control & Glow Plug Control Wiring Circuit:
Diesel Engine Fuel Control & Glow Plug Control Wiring Circuit:
