Pontiac
>>
1983
>>
Parisienne V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Seats
>>
Right Hand Seat
Right Hand Seat

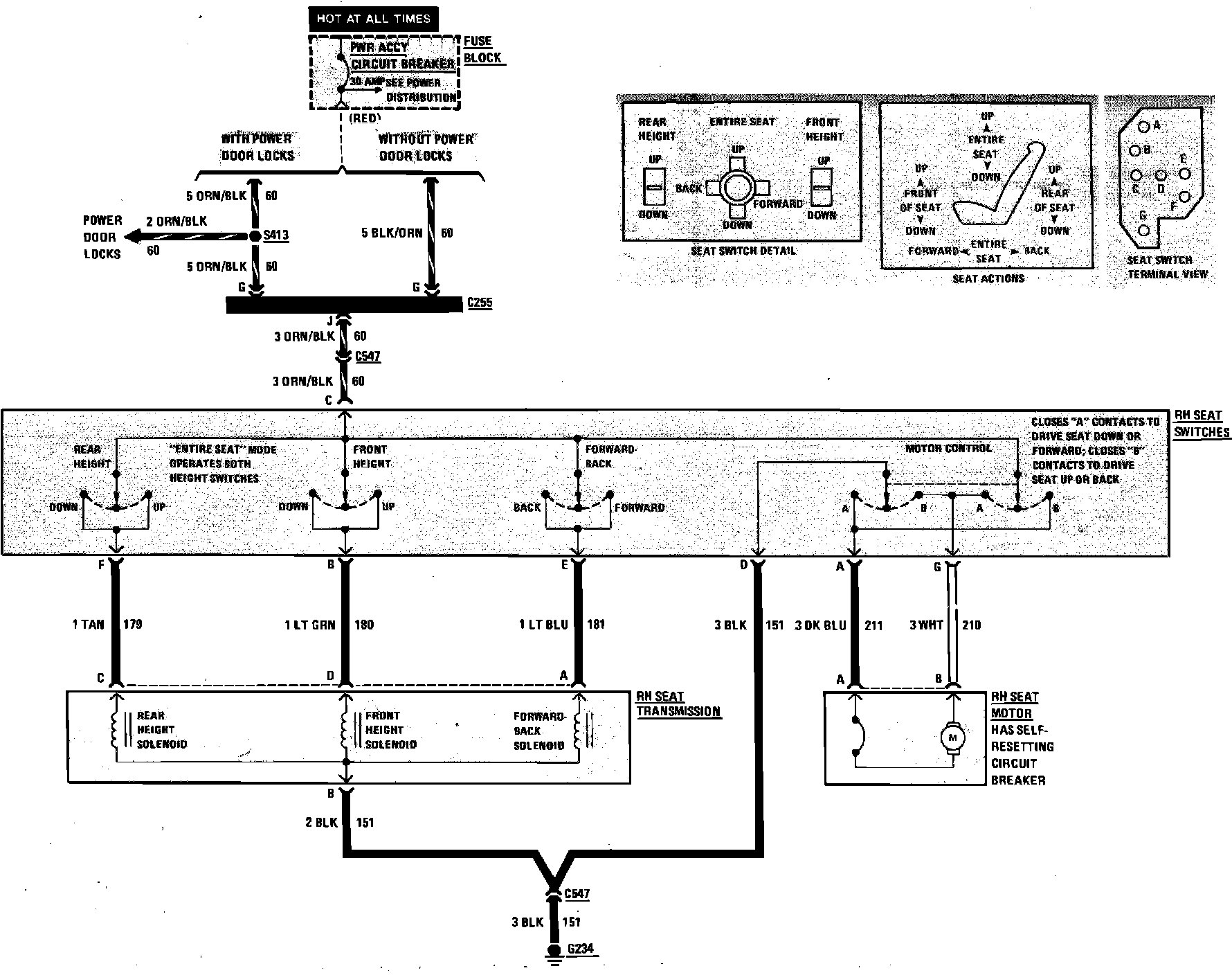

Power Seat Wiring Circuit (Right Hand Seat):
