Tool Modification Required - Special Tool J-25013 (Support Fixt

Number 83-I-101 Section 7 Date 06/83
Subject: TOOL MODIFICATION REQUIRED - SPECIAL TOOL J-25013 (SUPPORT FIXTURE) - THM 200 TRANSMISSION

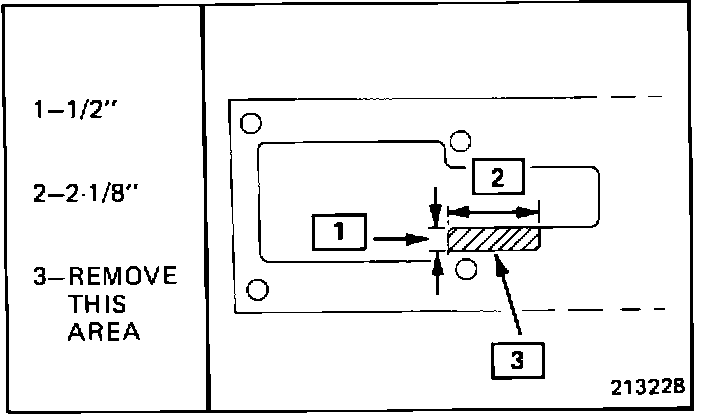

Special tool J-25013 should be modified as shown.. This will allow the tool to fit the latest models of the THM 200 transmission used on some Firebird models.. The modification does not affect usage on earlier model 200 transmissions.
