Pontiac
>>
1983
>>
Firebird V6-173 2.8L VIN 1 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cruise Control
Cruise Control

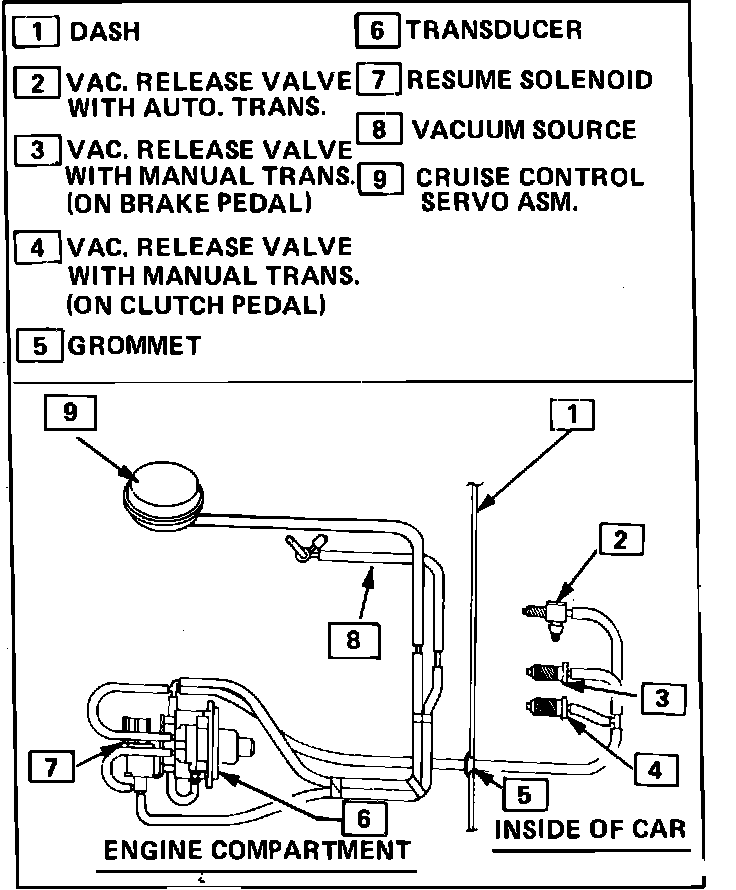

Cruise Control Vacuum Circuit:

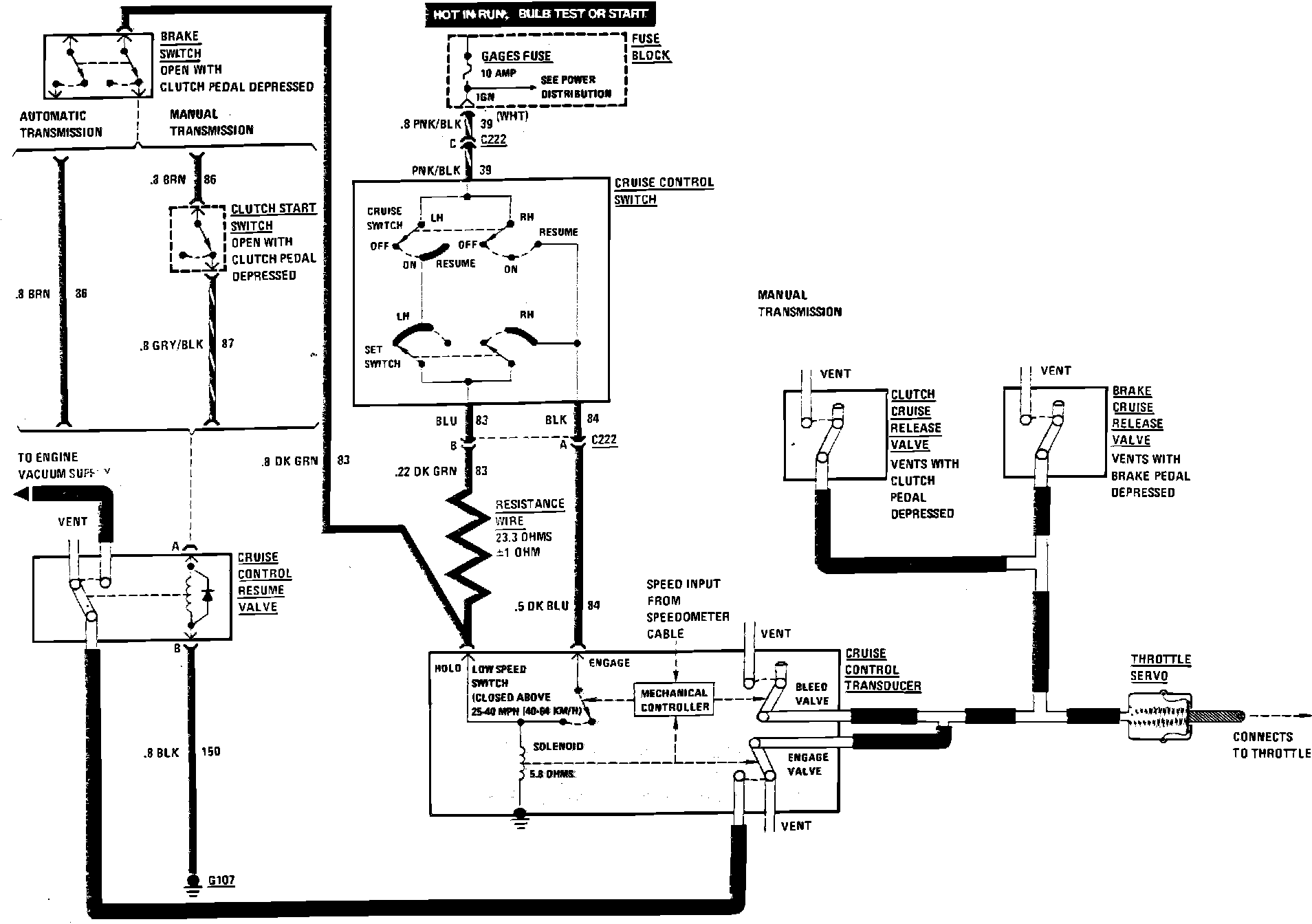

Cruise Control System Wiring Circuit:
