EVAP - Canister Control Valve Mounting Procedure

Number 83-T-22 Section 6E Date 04/83
Subject: REVISED MOUNTING PROCEDURE FOR CANISTER CONTROL VALVES - 1982-1983 FIREBIRD, BONNEVILLE, AND GRAND PRIX MODELS EQUIPPED WITH 5.0L (4-BBL.) ENGINE (VIN CODE H)

VALVE MOUNTING:

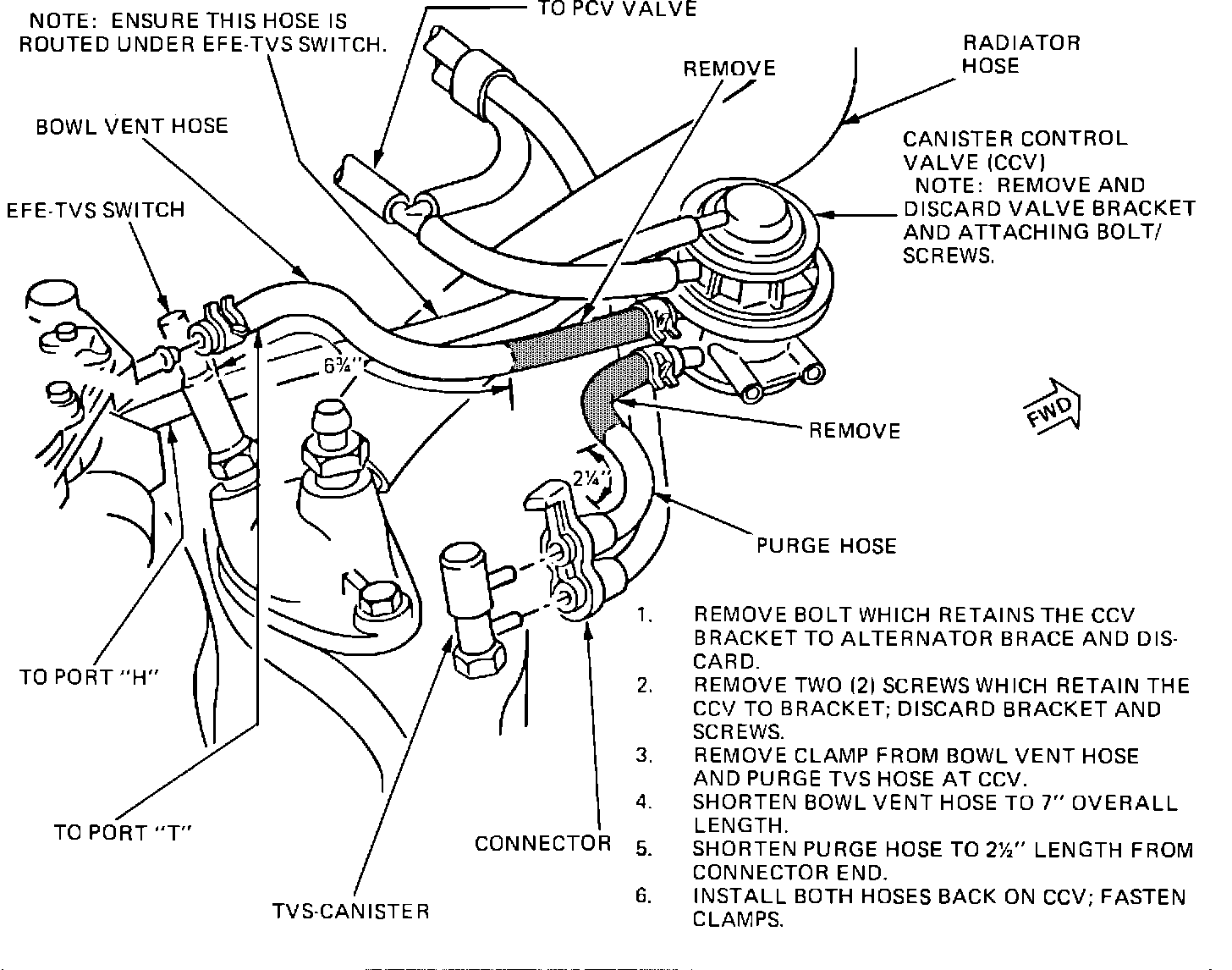

In the event a canister control valve (CCV) requires replacement, a newly designed valve should be installed.. The new valve should be supported using the following revised mounting procedures (refer to chart below):

ENGINE
MODEL NEW CCV VIN
YEAR ENGINE/MODEL VALVE MOUNTING PART NO. CODE

1982/ 5.0L (4-bbl.)/ Suspend Per 17075074 H
1983 Firebird or Instructions On
Grand Prix* or Illustration Shown
Bonneville* On The Reverse Side

1982/ 5.0L (4-bbl.)/ Suspend Per 17075074 H
1983 Grand Prix or Instructions Below
Bonneville


*Equipped With Heavy Duty Charging System
VALVE MOUNTING INSTRUCTIONS

1982-1983 5.0L (4-bbl.) Grand Prix or Bonneville Models

1. Remove bolt which retains the CCV bracket to alternator brace and discard.

2. Remove two (2) screws which retain the CCV to bracket. Discard bracket and screws.

3. Allow the CCV to be suspended by the vacuum hose harness.

WARRANTY INFORMATION

Labor Operation J6391
Time Allowance .4 Hr.
